• HX-SZ200-DECODER
HX-SZ200-DECODER
  • Product Introduction:

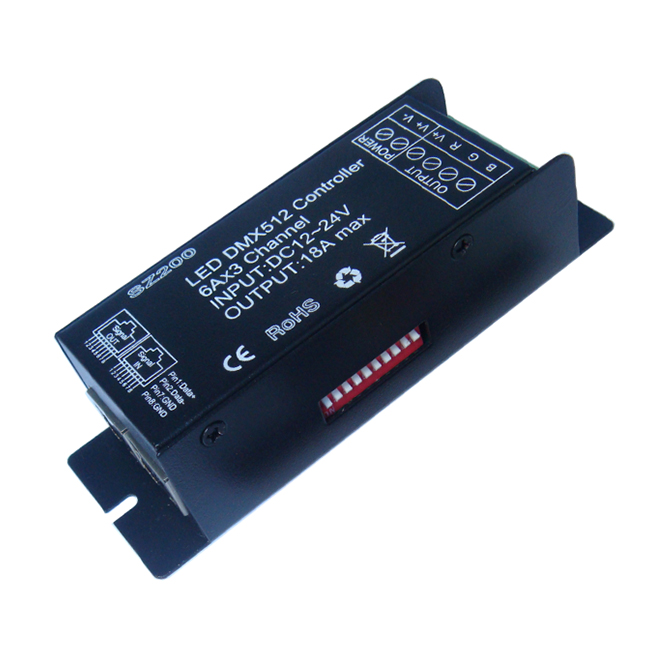

    LED DMX512 Decoder HX-SZ200-DECODER, adopts the advanced micro control unit, It can receive the DMX-512 standard digital control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. It can also connect the DMX digital console to change the light or each dynamic effect.

Product Details

Product Feature
  • As a constant voltage decoder, accept international popular DMX512 standard digital control signal, convert it to the PWM signal to drive LED lamps, applicable to a variety of constant voltage LED lamps, such as RGB LED module, lights, string lights, etc.
  • DMX decoder can be controlled by DMX master, and the decoder can connect the signal line to  continue to expand the channels up to 512, eventually be able to achieve more change in effect.
  • When the DIP switch are all “0”, the decoder assigned address automatically, also can required by the DIP switch.
  • If no master, DMXBM decoder can be set as synchronized controller, all of them can synchronize work as a system.
  • When used alone, DMXBM also can be used as a RGB controller, with 9 modes in total, can be chosen by the DIP switch.
  • In order to achieve synchronization of more LED lamps, RGB amplifier can be used.
  • There channels for RGB output, each allows a maximum current of 6A.
  • High watt output design, up to 432W.
  • 2-year warranty.
Technical Parameters
Working temperature -20-60℃
Supply voltage 12V~24V
0utput 3 channels
Connecting mode common anode
External dimension L127*W42*H33 (mm)
Packing size L135*W55*H40 (mm)
Net weight 150g
Gross weight 170g
Output gray 256 levels (RGB each)
Output current <6A(each channel)
Output power 5V:<90W,  12V:<216W,  24V:<432W
Frequency of RF remote control 433.9MHz
Frequency of PWM signal output 5.2KHz
Interface Specifications
DMX input/output interface:

Adopt Standard RJ45 network cable port.
Address code and set feature service interface:

Adopt 10-bit side of the dial-type DIP switch.
Power and Payload interface:

Adopt male and female connector with screw.
Direction for use
This product is in compliance with DMX512 protocol, compatible autoindex addressing and manual establishment address.
Each universal DMX controller takes up 3 DMX addresses. It adopts 2 ways (autoindex addressing and code switch) to set up the address. When adopting the autoindex addressing, all switches are “off” status. When adopting the code switch to set up address, the 10th bit(FUN) is “off” status, and other 9 bits are  binary value code switch which are used to set up the DMX starting address code. The first bit is the lowest order bit, and the ninth is the highest order bit. That can set up 511 address codes. The DMX starting address code is equal to the sum of 1st to 9th bit. If move down one bit of code switch (“ON” set “1”), you can get the placevalue of this bit. If move up (set “0”), the placevalue is 0. For example: if you want to set up DMX starting address code for 73, you should move down the 7th, 4th, and 1st bit of code switch for “1”, and others for “0”, Then the placevalue’s sum of 1st to 9th bit is 64+8+1. That is to say, the DMX512 starting address code is 73. (The correspondence dials code position is as follows)
To choose the channel from the Dial in-line Package (DIP) Switch:
Number 1 2 3 4 5 6 7 8 9 10
Weight number 1 2 4 8 16 32 64 128 256 FUN
  1. Example 1:

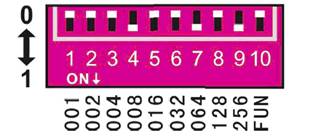

   Like figure 1, to set up the DMX starting address code for 37, should move down the 6th, 3th, 1st bit for “1”, others for “0”. Then the placevalue’s sum of 1st to 9th bit is 32+4+1, as is for 37.

Figure 1
  1. Example 2:
Like figure 2, to set up the DMX starting address code for 328, should move down the 9th, 7th, 4th bit for “1”, others for “0”. Then the placevalue’s sum of 1st to 9th bit is 256+64+8, as is for 328.

Figure 2
The function outside of the DMX
  1. Control with DIP switch
  1. Test function:

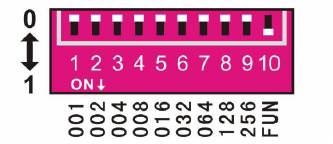

The DIP switch’s 10th bit is “FUN”, for built-in function key. When “FUN”=”OFF”, is for DMX decoder function. This is used to adopt DMX signal. When “FUN”=”ON”, the test function like figure 3:
1-9 switch OFF: black
Switch 1=ON: red
Switch 2=ON: green
Switch 3=ON: blue
Switch 4=ON: yellow
Switch 5=ON: purple
Switch 6=ON: cyan
Switch 7=ON: white                                              Figure 3
Switch 8=ON: Seven-color jumpy changing (8 grades of speeds are available)
Switch 9=ON: All-color gradual changing (8 grades of speeds are available)
  1. Speed choice of jumpy changing and gradual changing’s effect:
In test function, when switch 8=ON, is for seven-color jumpy changing effect. When switch 9=ON, is for seven-color gradual changing effect. 8 grades of speeds are available for each effect:
1-7 switch OFF: 0 grades of speeds
Switch 1=ON: 1 grade of speeds
Switch 2=ON: 2 grades of speeds
Switch 3=ON: 3 grades of speeds
Switch 4=ON: 4 grades of speeds
Switch 5=ON: 5 grades of speeds
Switch 6=ON: 6 grades of speeds
Switch 7=ON: 7 grades of speeds (maximum speed)
Figure 4
As figure 4, when all switches are “ON” at the same time, the more value is taken as final. The state of decoder is gradual changing of test function. Its variable speed is 7. In addition, when signal indicator (green) blinks slowly, it runs the built-in program effectiveness of decoder. When the decoder receives the DMX signal, signal indicator will flash rapidly.
Typical Applications

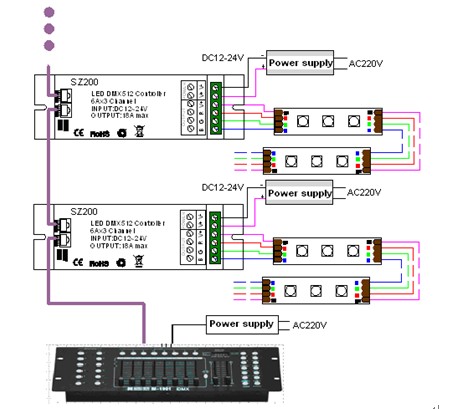

  1. Be used as a DMX512 decoder2:

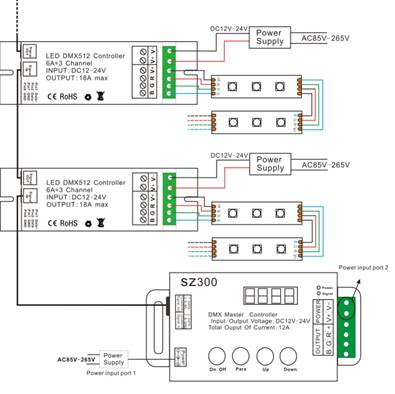

2.Be used as a DMX512 decoder2:

Product information for placing order
Product name Item number
DMX512 Decoder HX-SZ200-DECODER
