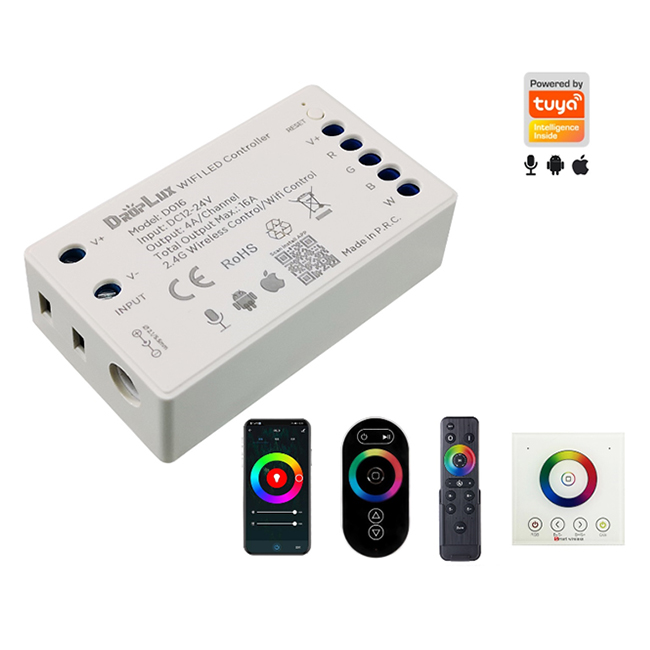

HX-D016 wifi led controller
  • Product Introduction:
    D016 WIFI led controller for LED RGBW Strips Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED RGBW lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on. Can be controlled by both RF 2.4GHz remote control and WIFI APP, the WIFI control technology powered by Tuya.

Product Details

Product Features
  • Short-circuit protection.
  • DC12-24V, four channels output, Max. load current: 3CH*5A; Max. load power: 180W/12V; 360W/24V.
  • RF remote control is optional, 3 compatible remote controls for options.
  • WIFI technology powered by Tuya, And compatible with voice control via Amazon Alexa, Google Assistant, Yandex Alice and so on..
  • Memory function, each time power-on reserve the mode which stop in the last power-off.
  • Warranty of this product is three years, exclude the artificial situation of damaged or overload working.
Technical Parameters
Controller
Working temperature -20-60℃ Supply voltage DC12V-24V
Static power consumption <1W Connecting mode Common anode
Grayscale 1024 levels Speed stage 100 levels
External dimension L70*W40*H20 mm Packing size L95*W47*H33mm
Net weight 65g Gross weight 80g
RF frequency 2.4GHz RF distance ≤20m
Short circuit protection Yes Memory function Yes
Output 3 channels Output current ≤5A(each channel)
PWM frequency 1.95KHz Max. Output power 12V:<180W, 24V:<360W

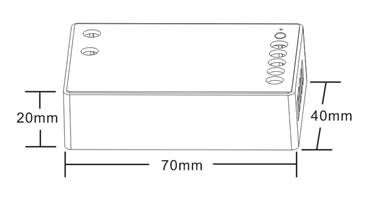

Dimensions

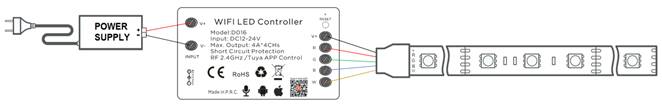

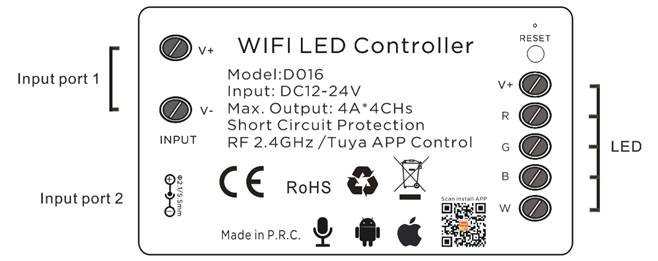

 Interface Specifications

Direction for use
1WIFI controlled by Tuya Application to achieve smart control like group control, scene control, timer control, music control and so on.
Scan QR code from controller to download Tuya application:      (Tuya).
Long pressing “Reset” button on controller and hold for 5 seconds until the loading LEDs flashing to start the connection with Tuya APP. Please read operation instruction of App, or following the pop-up prompt message with the APP, to finish the rest connection operation.
And compatible with voice control via Amazon Alexa, Google Assistant, Yandex Alice and so on.
 2Remote controlled by RF 2.4GHz remote control as below:
Option 1 Option 2 Option 3
SWC-RGB-2.4G RFBK-RGB-2.4G(RGB function) HWP86-RGB-2.4G
Please pair the WIFI controller to remote control before using. The operation instruction and functions can be found from manuals of remote control.
Wireless-synchronization function under remote controlled type
Receivers will transmit the control signals from the remote control and self-inspection the work statues for each other, so multiple receivers can wireless-sync-work completely when be paired to the same one remote control, not only static mode but also dynamic mode, to achieve wired-like operation experience.

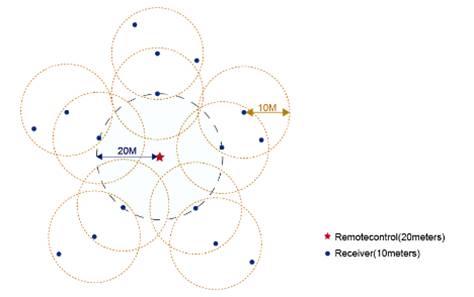

In order to achieve perfect wireless synchronization effect, please keep the distance between receivers within 10 meters as above show.
The function of each remote as below:

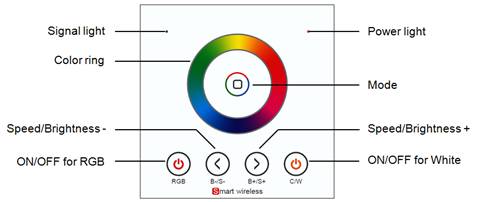

A. SWC-RGB-2.4G

The function of each button as below:
Name of key Instruction Remarks
OFF OFF in any time
PAUSE Pause/Run for dynamic modes
Mode The mode will go to next, when you touch the key each time 9 modes in total
Speed/Brightness + The Speed/Brightness will +1, when  touch the key each time Speed for dynamic modes, Brightness for static modes
Speed/Brightness - The Speed/Brightness will -1, when touch the key each time
Color Ring For static color selection
9 modes in total as below:
No Patterns No Patterns
1 Static white 6 Seven-color gradient changing
2 White breath 7 R/G cross fade
3 Three-color jump changing 8 R/B cross fade
4 Seven-color jump changing 9 G/B cross fade
5 Three-color gradient changing

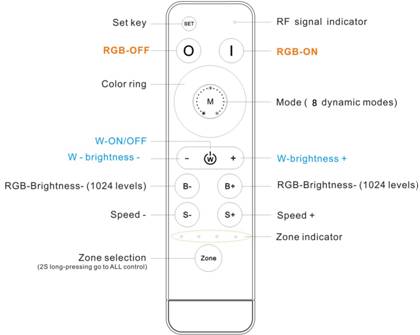

B. RFBK-RGB-2.4G(RGB function)

Name Description
Nonfunctional.
RGB channels-Turn on.
RGB channels-Turn off.
Color ring Static color options, 64 colors in total.
Dynamic modes, 8 modes in total.
W channel-Turn ON/OFF.
W channel- brightness -, 1024 levels, long-press can get fast adjusting.
W channel- brightness +, 1024 levels, long-press can get fast adjusting.
Brightness – for static colors by 1024 levels. Long-press get fast adjusting.
Brightness + for static colors by 1024 levels. Long-press get fast adjusting.
Speed down for dynamic mode (100 levels). Long-press get fast adjusting.
Speed up for dynamic mode (100 levels). Long-press get fast adjusting.
Zone selection, 2 seconds long-press get “all-control
8 dynamic modes as below:
No Patterns Remarks No Patterns Remarks
1 White breathe Speed is adjustable,
brightness is unadjustable
5 7 color fade Speed is adjustable,
brightness is unadjustable
2 3 color jumpy 6 R/G cross fade
3 7 color jumpy 7 R/B cross fade
4 3 color fade 8 G/B cross fade
C. HWP86-RGB-2.4G

The function of each button as below:
Name of key Instruction Remarks
RGB ON/OFF key for RGB channels
C/W ON/OFF key for CW/WW channels
Mode The mode will go to next, when you touch the key each time 9 modes in total.
Speed/Brightness + The Speed/Brightness will +1, when  touch the key each time Speed for dynamic modes, Brightness for static modes .
Speed/Brightness - The Speed/Brightness will -1, when touch the key each time
Color Ring For RGB channels static color selection
9 modes in total as below:
No Patterns No Patterns
1 Static white 6 Seven-color gradient changing
2 White breath 7 R/G cross fade
3 Three-color jump changing 8 R/B cross fade
4 Seven-color jump changing 9 G/B cross fade
5 Three-color gradient changing
Typical Applications


Product information for placing order
Product name Item number
D016 series WIFI led controller for RGBW WIFI controller: D016
Remote control(optional): HX-SWC-RGBW-2.4G
                         HX-RFBK-RGB-2.4G
                         HX-HWP86-RGBW-2.4G
