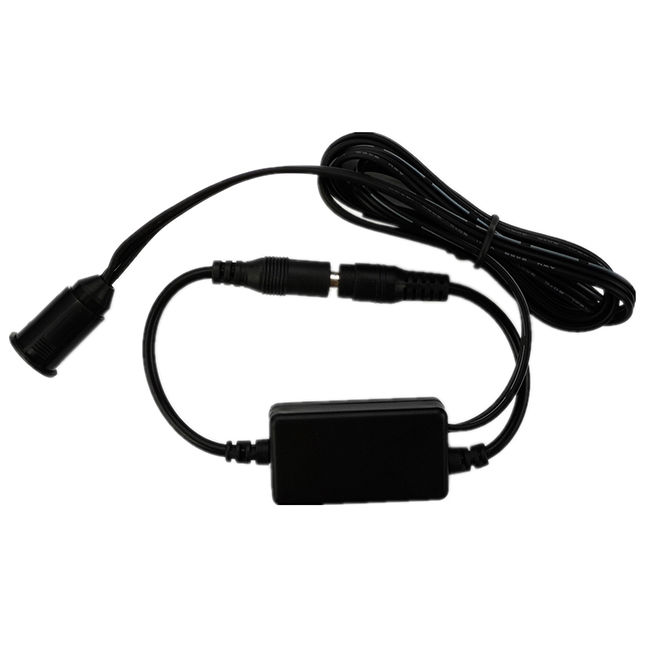

HX-MINI003-CB

Product Introduction:
MINI sensor switch controller for single color LED strip Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology for controlling constant voltage LED lamps. The function is automatically switch on/off the light by the operation of people close the door to block the ITR sensor or open the door to release the blocking.

Product Details

Product Features

Designed for single color constant voltage LED lights in cabinet/ furniture application.
DC12-24V, output current: 1ch*6A.
Stable sensitivity with ITR sensor, soft light up and down.
3-year warranty exclude the artificial situation of damaged or overload working.

Technical Parameters

Working temperature	0-45℃	Supply voltage	DC12V-24V
Static power consumption	<1W	Sensor	ITR
Sensor range	0-8CM	Sensor cable	1 meter
External dimension	L48W26H13 mm	Packing size	L100W65H40mm
Net weight	50g	Gross weight	65g
Output	1 channel	Output current	≤6A
PWM frequency	490Hz	Max. Output power	12V:<72W, 24V:<144W

Dimensions
Controller:

Sensor:

Interface Specifications
Input port: DC plug (2.1/5.5, male) Loading port: DC plug(2.1/5.5, female)

Direction for use
Blocking the sensor like closing the door of furniture in 0-8CM range, output lighting will gradually to off;
Opening the door of furniture, the output light will gradually light up.
Sensor installation:
