• Adopt PWM technology, dimming from 0% to 100%, smooth and flicker-free.
• Adopt RF remote control, transmission Distance up to 20m，no need line-of-sight.
• Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.

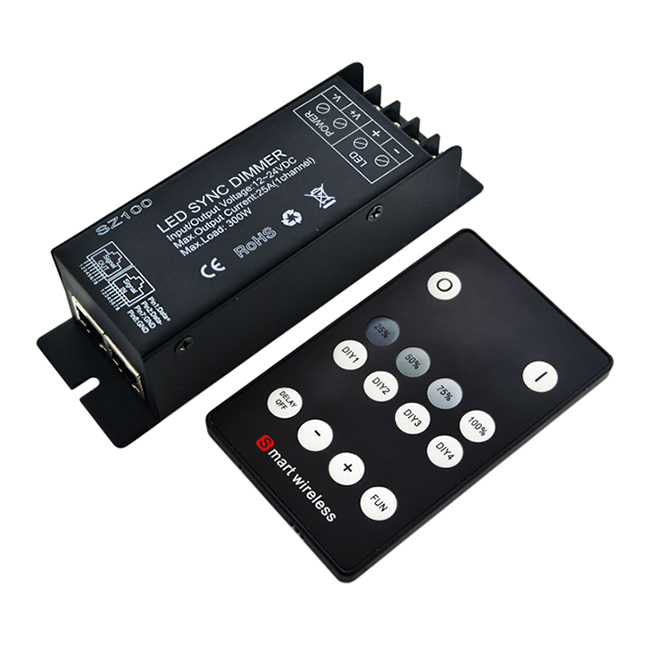

• HX-SZ100-SYNCDIM series are designed with big power output as 25A (1CH)/300W in the Max.
• 2-year warranty.

RF CODE

Receiver can be controlled by any one the same remote as factory default; remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.
Matching code operation
If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:
1.Step 1: Pressing key “DELAY OFF” and hold on, power on the controller, the load LEDs will be 50%  brightness white as responding.
2.Step 2: Pressing “ DELAY OFF” 3times in 3 seconds ,corresponding to the operation, the LED’s brightness will change as 25%-10%-back to preset level.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, receiver can be controlled by any one the same remote control.
1.Step 1: Pressing key “FUN” and hold on, power on the controller, the load LEDs will be 50%  brightness white as responding.
2.Step 2: Pressing “ FUN” 3times in 3 seconds ,corresponding to the operation, the LED’s brightness will change as 25%-10%-back to preset level.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Typical Applications

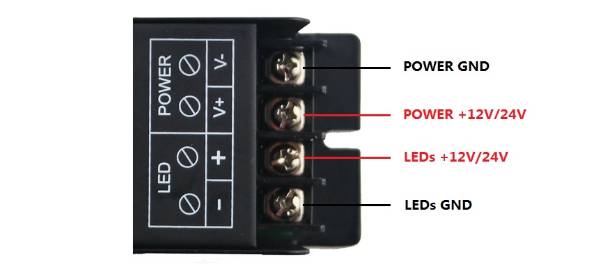

Conjunction Diagram:

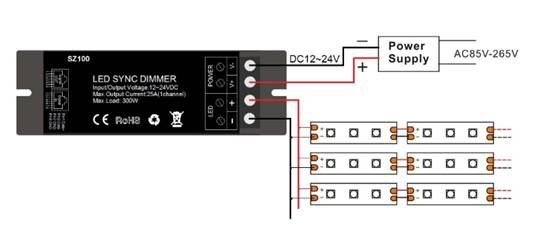

 Application Diagram:

Product information for placing order
