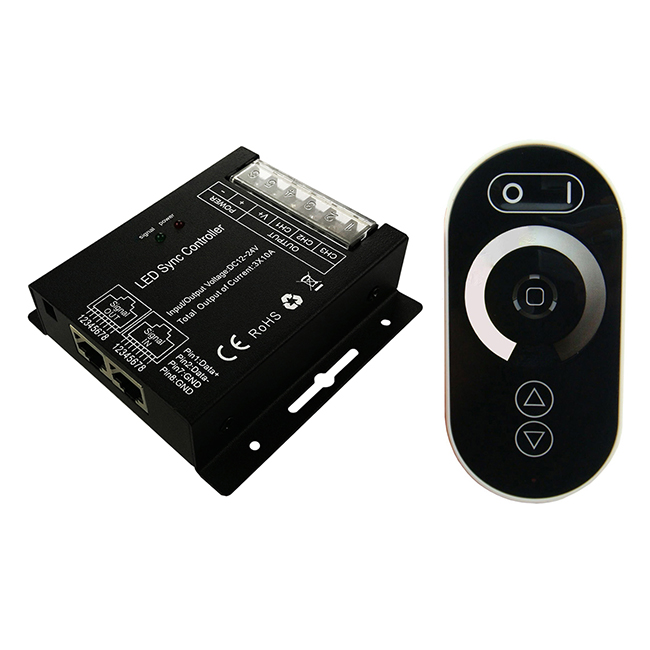

• HX-SZ600-DIM
HX-SZ600-DIM
  • Product Introduction:
    RF Touch Dimmer Dimmer adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt full touch RF remote control. 5 function buttons and 1 dimming ring in the center, all buttons are in the touch form, and the dimming ring has 128 levels in different brightness value. Particularly, there is a sense light in the remote control center. It shows the exactly light which is touched. As the led strip is the same. Further, there ar

Product Details

Product Feature
  • Designed for single color constant voltage LED lights, Working voltage DC12-24V.
  • Two channels output, Max. load current: 3CH*10A; Max. load power:360W/12V; 720W/24V.
  • Adopts RF touch remote control with fashion appearance, no need line-of-sight. Control range up to 20 meters.
  • Memory function, each time power-on reserve the mode which stop in the last power-down.
  • The brightness of static color is adjustable, 256 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.
  • Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
  • Multiple controllers can work synchronically when connected by network cable through the RJ45 connector, the network cable between 2 ports up to 100 meters.
  • Warranty of this product is two years, exclude the artificial situation of damaged or overload working.
Technical Parameters
Controller
Working temperature -20-60℃ Supply voltage DC12V-24V
Static power consumption <1W Connecting mode common anode
Grayscale 256 levels Speed stage 100 grade
External dimension L91*W88*H24 mm Packing size L108*W108*H50 mm
Net weight 290g Gross weight 320g
PWM frequency 400Hz Remote distance Up to 20M
Output 3 channels Output current ≤10A(each channel)
RF frequency 433.92Mhz Memory function support
Max. Output power 12V:<360W,  24V:<720W
Remote control
Working temperature -20℃~60℃ Supply voltage DC4.5V(AAA*3pcs)
Standby current <8uA Working current <30mA
Standby power <36uW Working power 135mW
Net weight 90g RF frequency 433.92MHz
External dimension L113*W55*H22 mm RF distance ≤20m












External Dimension
Packing box: L108*W108*H50 mm

Interface Specifications

Connection:V+→COM、CH1→V-、CH2→V-、CH3→V-;
Direction for use

  • Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

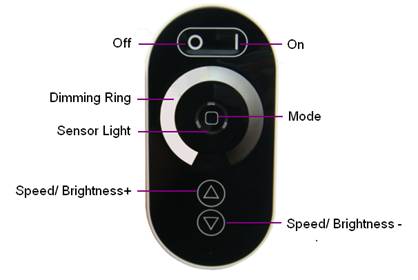

  • Adopts RF full touch control, with one dimming ring and 5 function buttons.
  • Tips: Without any operation more than 20 seconds, the touch remote will enter the sleep state, please  SHAKE the remote to wake up it before the next using.

The function of each button as below:
Name of key Instruction Remarks
ON ON in any time
OFF OFF in any time
Mode The mode will move to next, when touch the key each time 3 modes in total.
Speed/Brightness + The Speed/Brightness will +1, when  touch the key each time Speed for dynamic modes, Brightness for static modes.
Speed/Brightness - The Speed/Brightness will -1, when touch the key each time Speed for dynamic modes, Brightness for static modes.
Color Ring Touch any color temperature which you want
3 modes in total as below:
NO Patterns Remarks
1 Static 100% light Brightness is adjustable, speed is unadjustable
2 flash Speed is adjustable, brightness is unadjustable
3 fade
RF CODE
Tips: Receiver can be controlled by any one the same remote as factory default; full touch remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.
Matching code operation
If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:
  1. Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press the key “ON “ for 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be control by the remote.
  4. If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, wall-panel can be controlled by any one the same remote control.
  1. Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press Speed/Brightness -3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by any remote control(any one the same remote control can be used to clear the code).

4.  If not, please re-operate from step 1 to 2.
Typical Applications

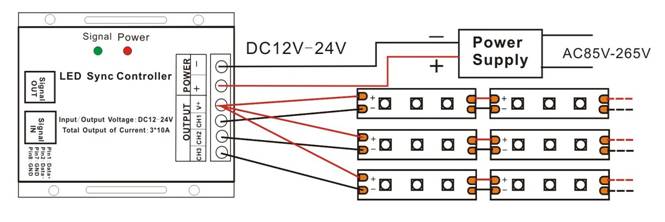

Application Circuit 1:(V+→COM、CH1→V-、CH2→V-、CH3→V-;)

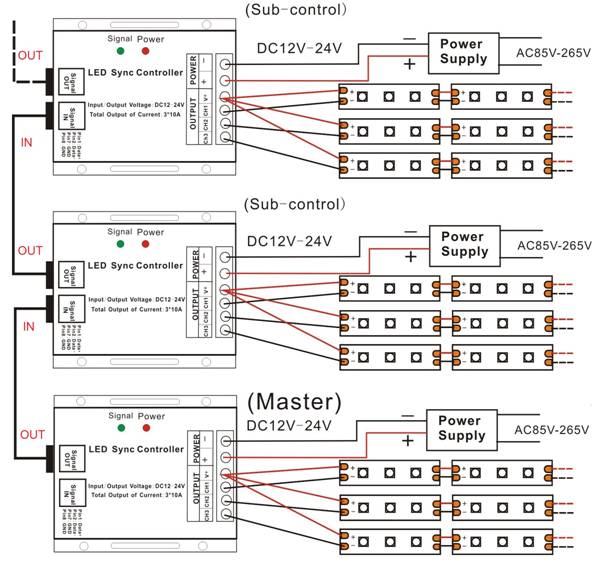

Conjunction diagram 2: ( Synchronization function with network Line

Tips:  The green signal indicator light will uniform flash with proper communication, and will off with any incorrect signal connection (like: poor contact, confused input and output, wrong wire order).
