• HX-SZ600-WP86-DIM
HX-SZ600-WP86-DIM
  • Product Introduction:

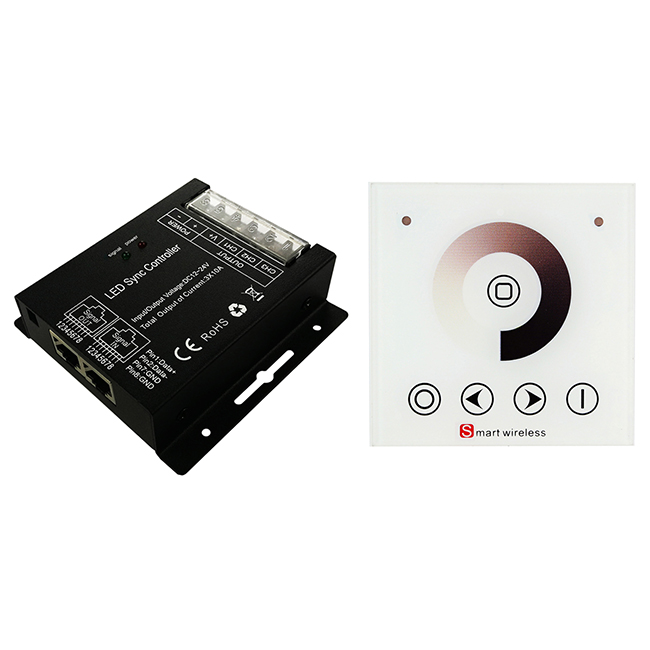

    LED Sync Dimmer with RF button remote HX-SZ600-WP86-DIM adopts the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. For instance, point source of light, flexible light strip, led modules, led strings and so on. Belong to low-voltage DC power input and output with two interfaces, including V+ is the positive interfaces, the other three for the negative interface. Meanwhile, you can turn on/off, adjust brightness for different lig

Product Details

Product Feature
  • Designed for single color constant voltage LED lights, Working voltage DC12-24V.
  • Three channels output, Max. load current: 3CH*10A; Max. load power: 360W/12V; 720W/24V.
  • Adopts full-touch wall panel remote control with fashion appearance, no need line-of-sight. Control range up to 20 meters. The working voltage of wall-panel is AC90-265V.
  • Structure/dimension/installation of the wall panel according to the 86-type European standards.
  • Memory function, each time power-on reserve the mode which stop in the last power-down.
  • Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
  • Multiple controllers can work synchronically when connected by network cable through the RJ45 connector, the network cable between 2 ports up to 100 meters.
  • Warranty of this product is two years, exclude the artificial situation of damaged or overload working.
Technical Parameters
Controller
Working temperature -20-60℃ Supply voltage DC12V-24V
Static power consumption <1W Connecting mode common anode
Grayscale 256 levels Speed stage 100 grade
External dimension L91*W88*H24 mm Packing size L102*W102*H66 mm
Net weight 280g Gross weight 300g
PWM frequency 400Hz Remote distance Up to 20M
Output 3 channels Output current ≤10A(each channel)
RF frequency 433.92Mhz Memory function support
Max. Output power 12V:<360W,  24V:<720W
Remote control
Ambient temperature 0-45℃ Working voltage AC90-265V(50/60Hz)
Standby power 0.2W Working power 2W
Net weight 130g RF frequency 433.92MHz
Dimension 86*86*34mm RF distance ≤20m
Structure 86-type European standard










Interface Specifications

Connection:V+→COM、CH1→V-、CH2→V-、CH3→V-;

Direction for use

  • Connect the load wire at first, followed by the power wire; Please ensure short circuit can not occur between wires before turning on the power;
  • Adopts RF full touch wall-panel remote control, with one dimming ring and 5 function buttons.
  • The signal light flash-- represents the signal has been sent well;

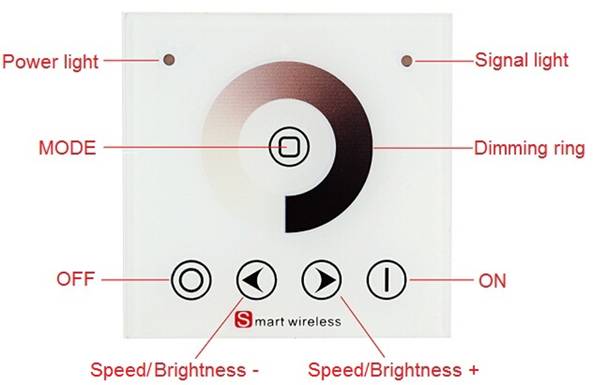

The function of buttons are shown as below:

 3 modes in total as below:
NO Patterns Remarks
1 Static 100% light Brightness is adjustable
2 flash Speed is adjustable
3 fade
Tips: Receiver can be controlled by any one the same remote as factory default; the wall-panel remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.
Matching code operation
If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:
  1. Step 1: Pressing key “mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press the key “ON“ for 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be control by the remote.
  4. If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, wall-panel can be controlled by any one the same remote control.
  1. Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press Speed/Brightness -3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by any remote control(any one the same remote control can be used to clear the code).
4.  If not, please re-operate from step 1 to 2.
Wall-panel Installation instruction
Step 1: Fixing the bottom cover into the wall;         Step 2:Fixing the metal frame into the bottom cover
                                                      with screws( projecting part upward )


Step 3: Pressing the wall-panel into the metal frame, after connecting well the input and output wires.

 Typical Applications

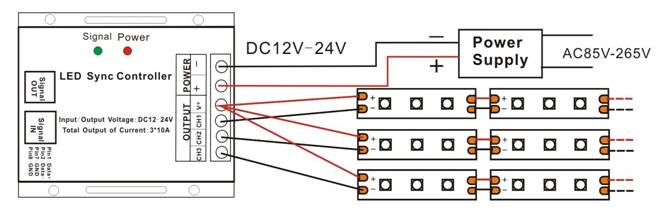

Power and LED’s connection diagram1:(Connection:V+→COM、CH1→V-、CH2→V-、CH3→V-;)

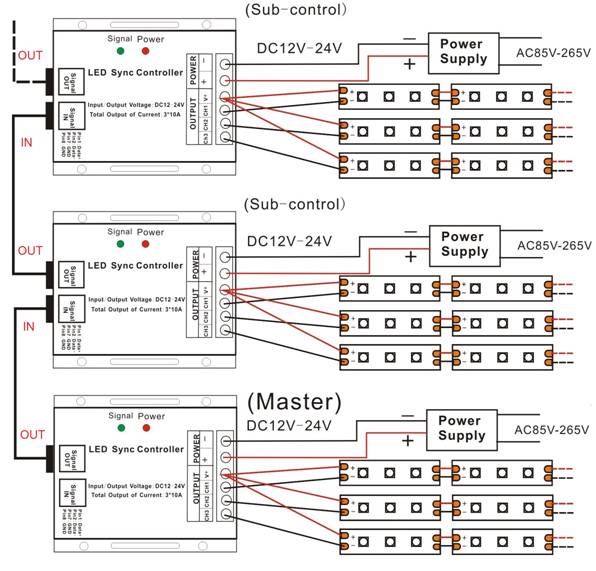

Conjunction diagram 2: ( Synchronization function with network Line )

Tips:  The green signal indicator light will uniform flash with proper communication, and will off with any incorrect signal connection (like: poor contact, confused input and output, wrong wire order).
