• HX-AMF-03
HX-AMF-03
  • Product Introduction:

    AMF is constant voltage product, it can work with all kinds of the constant voltage 4 CHs controller.
    Adding one HX-AMF-03 RGBW amplifier, more 384W (12V) led strips can be derived.
    Output to RGBW four channels, each channel max current up to 8A.
    HX-AMF-03 RGBW amplifier is compatible with all our company RGBW LED controller.
    3- year warranty.

Product Details

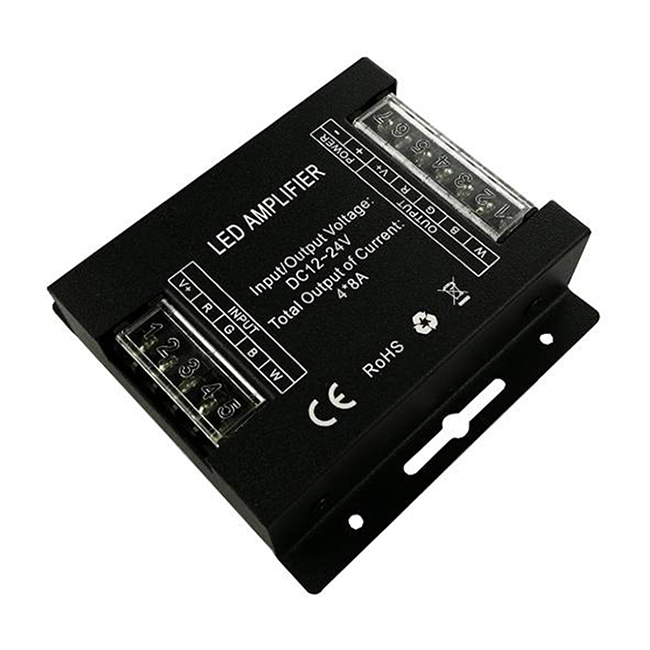

RGBW Amplifier
HX-AMF-03 RGBW Amplifier is compatible with all our company RGBW LED controller. It receive in and transmit out PWM signal. Adding one HX-AMF-03 RGBW amplifier, more 384W (12V) led strips can be derived. In theory, RGBW amplifier can be connected to numerous.
Technical Parameters

Working temperature -20-60℃
Supply voltage DC12V~24V
Output 4 channels
Connecting mode common anode
External dimension L91*W88*H24 mm
Packing size L94*W92*H26 mm
Net weight 190g
Gross weight 220g
Static power consumption <1W
Output current ≤8A(each channel)
Output power 12V:≤384W,  24V:≤ 768W

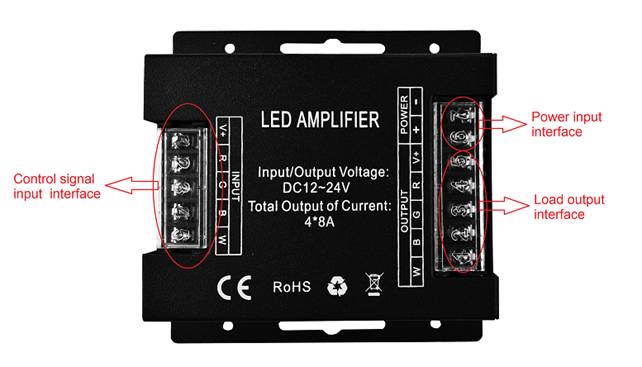

Interface Specifications

Direction for use

Seriously according to the print sign on the RGBW amplifier iron box, connect the input and output signal lines correctly. Then connect the power supplier to the RGBW amplifier Power. Specifically for the connection with LED controller and LED strip, please refer to the following <Typical Applications>

Typical Applications

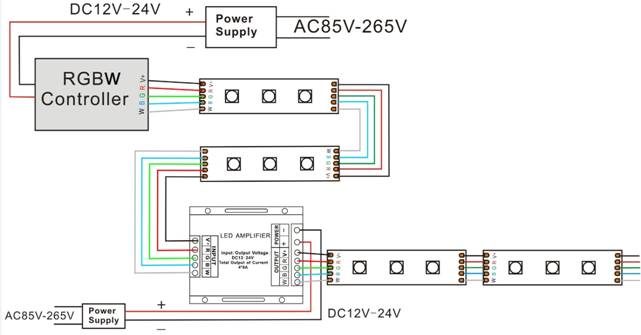

Application Circuit1- Serial connection:

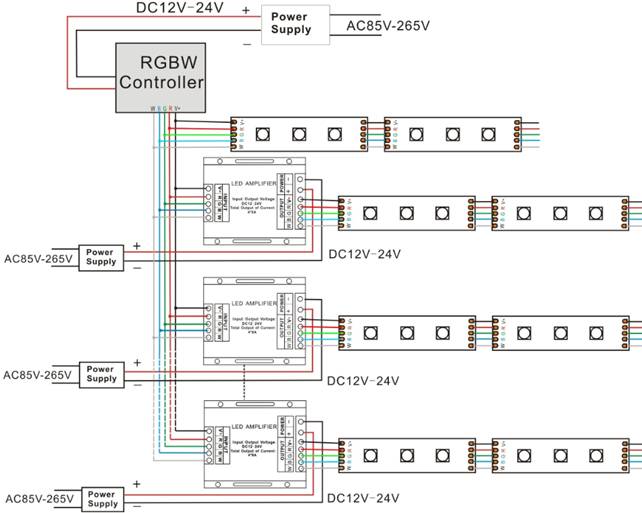

 Application Circuit2- Parallel connection:
