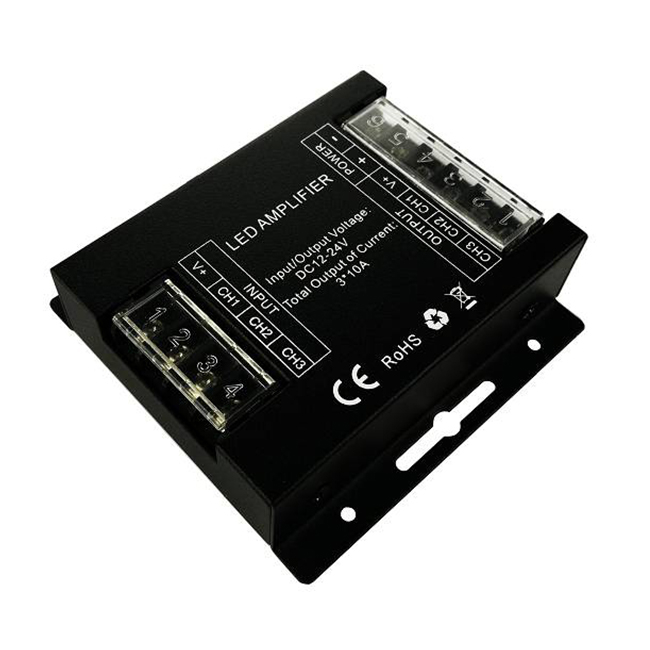

• HX-AMF-02
HX-AMF-02
  • Product Introduction:

    AMF is constant voltage product,it can work with all kinds of the constant voltage controller.
    Adding one HX-AMF-02 RGB amplifier, more 360W (12V) led strips can be derived.
    Output to RGB three channels, each channel max current of 10A.
    HX-AMF-02 RGB Amplifier is compatible with all our company RGB LED controller.
    3- year warranty.

Product Details

RGB Amplifier
HX-AMF-02 RGB Amplifier is compatible with all our company RGB LED controller. It receives in and transmit out PWM signal. Adding one HX-AMF-02 RGB amplifier, more 360W (12V) led strips can be derived. In theory, RGB amplifier can be connected to numerous.
Technical Parameters
Working temperature -20-60℃
Supply voltage DC12V~24V
0utput 3 channels
Connecting mode common anode
External dimension L91*W88*H24 mm
Packing size L94*W92*H26 mm
Net weight 190g
Gross weight 220g
Static power consumption <1W
Output current ≤10A(each channel)
Output power 12V:≤360W,  24V:≤ 720W

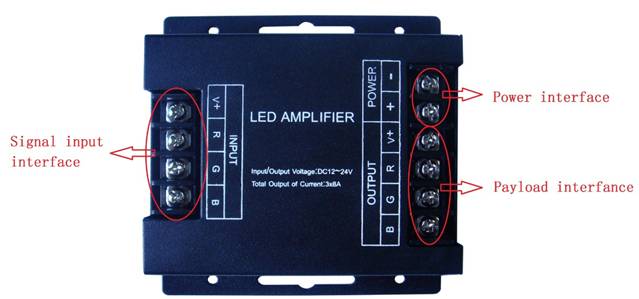

Interface Specifications

Direction for use

Seriously according to the print sign on the RGB amplifier iron box, connect the input and output signal lines correctly. Then connect the power supplier to the RGB amplifier Power. Specifically for the connection with LED controller and LED strip, please refer to the following <Typical Applications>
