  • Product Introduction:

    AMF is constant voltage product,it can work with all kinds of the constant voltage controller.
    Adding one RGB amplifier, it can control more 144w(12V*12A),con connect numerous in theory.
    Supply voltage is DC5V, 12-24V optional.
    Output to RGB three channels,each channel max current of 4A.
    2-year warranty.

Product Details

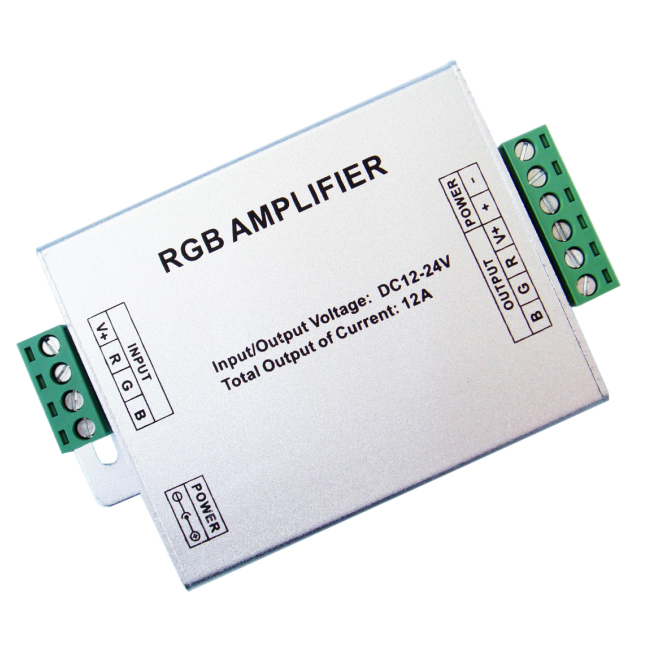

RGB Amplifier
 RGB Amplifier is used for all our company RGB LED controller. It can accept PWM signal. When adding one RGB amplifier, it can connect to more than double of the number led lights. In theory , RGB amplifier can be connected to numerous.
Technical Parameters

Working temperature -20-60℃
Supply voltage DC12-24V
0utput 3 channels
Connecting mode common anode
External dimension L105*W65*H23 mm
Packing size L117*W71*H36 mm
Net weight 110g
Gross weight 140g
Static power consumption <1W
Output current <4A(each channel)
Output power 12V:<144W,  24V:<288W

Interface Specifications

Direction for use
In accordance with Screen Printing on the RGB amplifier panel, connect the input and output signal lines correctly as order. Then connect the power amplifier to the RGB amplifier. Specifically for the use with the LED control, please refer to the following <Typical Applications>.
