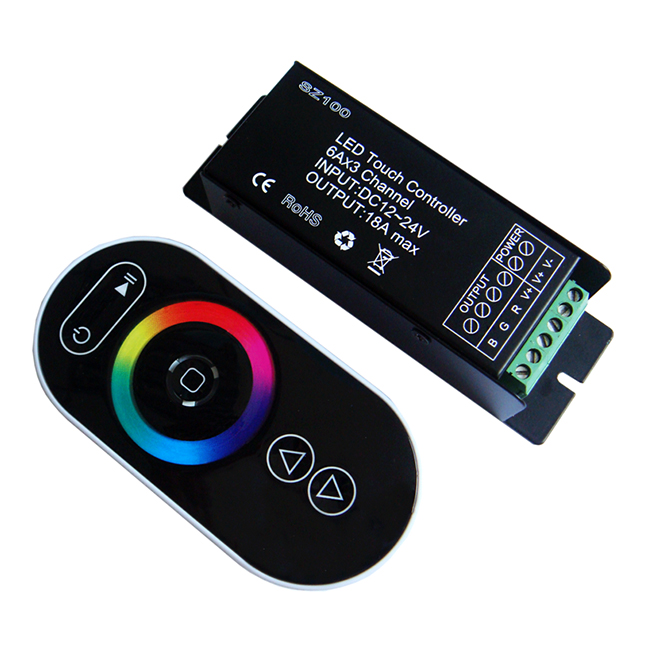

• HX-SZ100-TOUCH V4.0
HX-SZ100-TOUCH V4.0
  • Product Introduction:
    LED RGB Controller with RF full touch remote control HX-SZ100-Touch, adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects thro

Product Details

Product Features
  • HX-SZ100-Touch is constant voltage, suit for all kinds of the constant voltage LED RGB lamps.
  • There is a RF remote touch control 5 functions, 1 color ring and 1 color sense lamp in the center, all buttons are in the touch form, the color ring have 128 levels in different colors.
  • There is a sense light ring in the remote control’s center. It shows the color when different colors been touched, as the LED lamps is the same color.
  • There are 10 modes in total, including white static colors and 9 dynamic modes. The brightness of all static color and the speed of the dynamic modes are adjustable.
  • In order to achieve the synchronization of more lamps, RGB Amplifier can be used.
  • 2-year warranty.
Technical Parameters
Working temperature -20-60℃
Supply voltage DC12V~24V
Output 3 channels
Connecting mode common anode
External dimension L127*W41*H32 (mm)
Packing size L147*W85*H73 (mm)
Net weight 280g
Gross weight 340g
Output gray 256 levels (RGB each)
Output current <6A(each channel)
Output power 12V:<216W,  24V:<432W
Frequency of RF remote control 433.92MHz
Interface Specifications

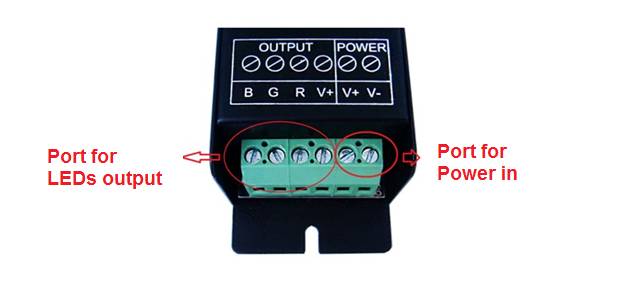

Power and Payload interface:

Adopt male and female connector with screw.
Direction for use

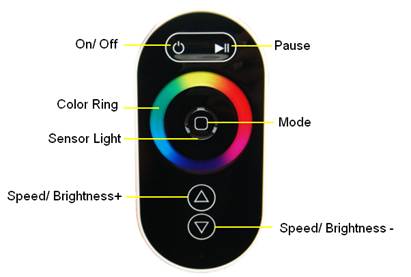

Adopts RF touch control, with one color ring and 5 function buttons.
Tips: Without any operation more than 20 seconds, the touch remote will enter the sleep state, please  SHAKE the remote to wake up it before the next using.

The function of each button as below:
Name of key Instruction Remarks
ON/OFF ON or OFF in any time
Pause Pause or Continue
Mode The mode will go to next, when you touch the key each time 10 modes in total.
Speed/Brightness + The Speed/Brightness will add, when you touch the key each time Speed for dynamic modes, Brightness for static modes.
Speed/Brightness - The Speed/Brightness will subtract, when you touch the key each time Speed for dynamic modes, Brightness for static modes.
Color Ring Touch any color which you want
10 modes in total as below:
No Patterns Remarks
1 Static white Brightness is adjustable
2 White flash Speed is adjustable, brightness is unadjustable
3 White breath
4 Three-color jump changing
5 Seven-color jump changing
6 Three-color gradient changing
7 Seven-color gradient changing
8 R/G cross fade
9 R/B cross fade
10 G/B cross fade
RF CODE
Receiver can be controlled by any one the same remote as factory default; remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.
Matching code operation
If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:
  1. Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press the key “Pause “ for 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be control by the remote.
  4. If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, receiver can be controlled by any one the same remote control.
  1. Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press Speed/Brightness -3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by any remote control(any one the same remote control can be used to clear the code).
4.  If not, please re-operate from step 1 to 2.
Typical Applications

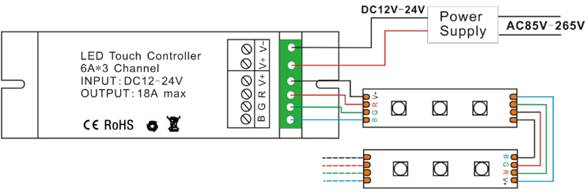

 Application Circuit 1:

Product information for placing order
Product name Item number
LED RGB Controller with RF full touch remote control HX-SZ100-TOUCH
