  • Product Introduction:

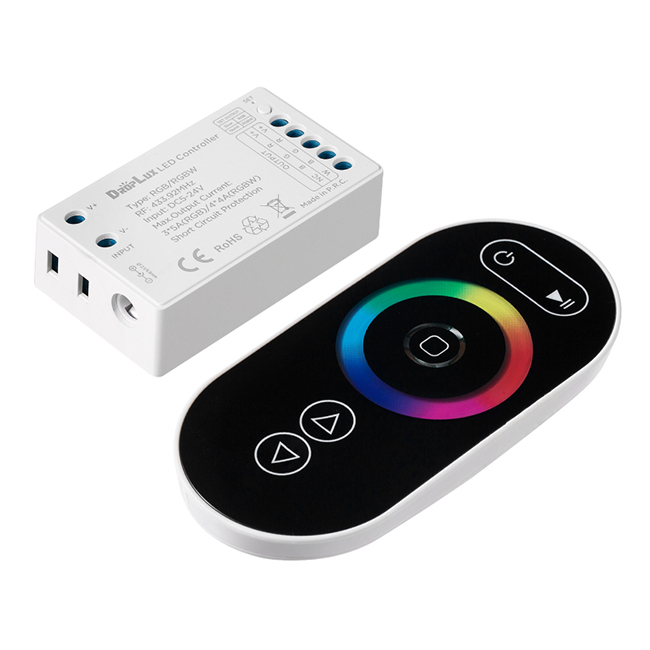

    RGB/RGBW 2 in 1 LED controller with RF TOUCH remote control Controller adopts the advanced micro control units; it is used for controlling a variety of LED light. For instance, point source of light, flexible light strip, wall washer lamp and so on. It has many advantages such as good appearance, easy connection and simplicity to use. Adopts RF touch remote control to ON/OFF, choose colors/ dynamic modes, simplicity to use. Especially, it is integrated 2 optional programs for different color typ

Product Details

Product Features:
  • This product is a constant voltage controller, the standard product power supply voltage 5-24V is a wide voltage, and the power supply in this range can be used universally;
  • Output current: 3chs * 5A (RGB), 4chs * 4A (RGBW);
  • With power-off memory storage function;
  • Adopts RF touch wireless remote control, the maximum distance can reach 20 meters;
  • Adopts color ring to achieve 64 colors and 10 modes, the brightness of all static color and the speed of the dynamic modes are adjustable.
  • Both remote control and receiver are 2 in 1 for RGB and RGBW, one product for 2 types of LED strips;
  • Short circuit protection function;
  • 3-year warranty.
Technical Parameters
Controller
Working temperature -20-60℃ Supply voltage DC5V-24V
Static power consumption <1W Connecting mode common anode
Grayscale 1024 levels(RGB each) Speed stage 100 grade
External dimension L70*W40*20mm Packing size L90*W54*H32 mm
Net weight 45g Gross weight 70g
Output 3/4 channels Max. Output current 3CH*5A(RGB) / 4CH*4A (RGBW)
RF frequency 433.92Mhz Remote distance Up to 20M
PWM frequency 1.95KHz Memory function Yes
Short-circuit protection Yes Max. Output power RGB: 75W(5V); 180W(12V); 360W(24V)
RGBW: 80W(5V); 192W(12V); 384W(24V)
Touch remote control:
Working temperature -20-60℃ Supply voltage 4.5V (AAA*3PCS)
Standby current 8uA Working current 30mA
Standby power 36uW Working power 135mW
Net weight 95g External dimension L150*W40*H20 (mm)
RF distance ≤20m RF frequency 433.92MHz
Interface Specifications

Direction for use
  • Connect the load wires at first, followed by the power wires.
  • Use the SET button to set the output type to be consistent with the type of LEDs connected to the load. The indicator flashes slowly: RGB, flashes quickly: RGBW.






  • Adopts RF touch control, with one color ring and 5 function buttons.

Tips: Without any operation more than 20 seconds, the touch remote will enter the sleep state, please  SHAKE the remote to wake up it before the next using.

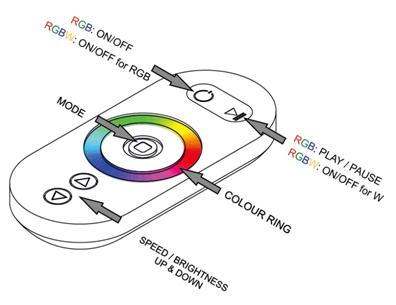

 Key functions

Button Instruction Remarks
RGB channels ON/OFF in any time for both RGB/RGBW type receiver
Play/pause for RGB type receiver; W channel ON/OFF for RGBW receiver
Color ring for color selection
For RGB white and Dynamic modes 10 modes in total
Increase speed/brightness level, long-pressing can get fast adjustment Speed for dynamic modes, Brightness for static modes.
Reduce speed/brightness level, long-pressing can get fast adjustment
10 modes in total as below:
No Patterns Remarks
1 Static white Brightness is adjustable
2 White flash Speed is adjustable, brightness is unadjustable
3 White breath
4 Three-color jump changing
5 Seven-color jump changing
6 Three-color gradient changing
7 Seven-color gradient changing
8 R/G cross fade
9 R/B cross fade
10 G/B cross fade
RF CODE
Receiver can be controlled by any one the same remote as factory default; remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.
Matching code operation
Receiver and Remote Control are coded as default, matching them before using, if unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instructions before using:
Method 1:
1.Step 1: Pressing key “MODE” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
2.Step 2: Pressing “PAUSE ‘’ or “W ON/OFF” 3times in 3 seconds, corresponding to the operation, the LED’s brightness will change as 25%-10%-back to preset level.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Method 2:
1.Step 1: Power on the controller after well connection.
2.Step 2: 5 seconds long pressing of the “SET” button (on receiver) until the indicator light lights up, pressing “MODE” (on remote control) 1 time to finish ( “SET” button should be pressed also at the meanwhile), will see the load LEDs flash 3 times by successful operation.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, controller can be controlled by any one the same remote control.
Method 1:
1.Step 1: Pressing key “MODE” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
2.Step 2: Pressing “DOWN” 3times in 3 seconds, corresponding to the operation, the LED’s brightness will change as 25%-10%-back to preset level.
3.Step 3: Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Method 2:
1.Step 1: Power on the controller after well connection.
2.Step 2: 5 seconds long pressing of the “SET” button (on receiver) until the indicator light lights up, pressing “DOWN” (on remote control) 1 time to finish ( “SET” button should be pressed also at the meanwhile), will see the load LEDs flash 3 times by successful operation.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Typical Applications
Application Circuit 1: RGB

 Application Circuit 2: RGBW

Product information for placing order
Product name Item number
RGB/RGBW 2 in 1 LED controller with RF touch remote control HX-D5
