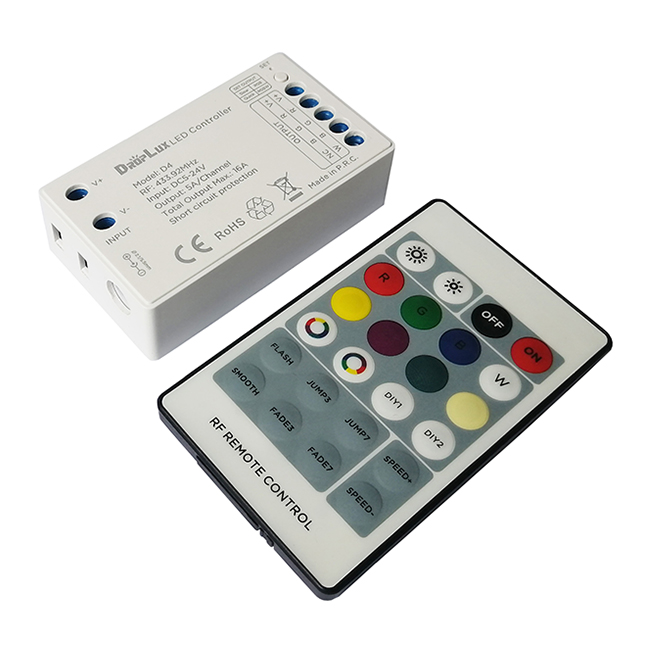

Product Features:

• This product is a constant voltage controller, the standard product power supply voltage 5-24V is a wide voltage, and the power supply in this range can be used universally;
• The output is 4 channels, the maximum current of each channel is 4A;
• With power-off memory storage function;
• Adopts RF 24-key wireless remote control, the maximum distance can reach 20 meters;
• Adopts color balance key to achieve 1024 colors and can be saved as DIY modes;
• Both remote control and receiver are 2 in 1 for RGB and RGBW, one product for 2 types of LED strips;
• Short circuit protection function;
• Output current: 3chs * 5A (RGB), 4chs * 4A (RGBW);
• 3-year warranty.

Technical Parameters
Controller

Working temperature	-20-60℃	Supply voltage	DC5V-24V
Static power consumption	<1W	Connecting mode	common anode
Grayscale	1024 levels（RGB each）	Speed stage	100 grade
External dimension	L70*W40*20mm	Packing size	L90*W54*H32 mm
Net weight	45g	Gross weight	70g
Output	3/4 channels	Max. Output current	5A (each channel), total 16A
RF frequency	433.92Mhz	Remote distance	Up to 20M
PWM frequency	1.95KHz	Memory function	Yes
Short-circuit protection	Yes	Max. Output power	80W(5V); 192W(12V); 384W(24V)

Remote control

Working temperature	-20℃~45℃	Supply voltage	DC3V（CR2025）
Standby current	3.3uA	Working current	12mA
Standby power	9.9uW	Working power	36mW
Net weight	25g	RF frequency	433.92MHz
External dimension	L85*W51*H6mm	RF distance	≤20m

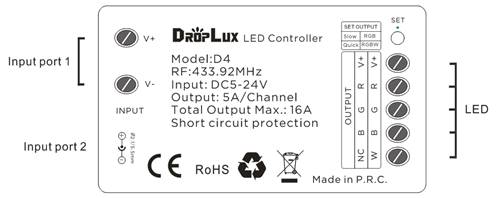

Interface Specifications

Direction for use

• Connect the load wires at first, followed by the power wires.
• Use the SET button to set the output type to be consistent with the type of LEDs connected to the load. The indicator flashes slowly: RGB, flashes quickly: RGBW.

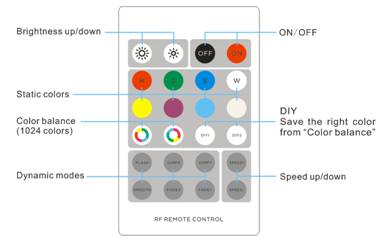

• Adopt 2 in 1 RF wireless remote control, 24 keys in total, function of each button as below：


Key functions for RGB

Brightness +	Brightness -	Off	On
Static Red	Static Green	Static Blue	Static white
Static Yellow	Static Purple	Static Cyan	Static warm white
Color balance in left direction, 1024 colors in total.	Color balance in right direction, 1024 colors in total.	DIY 1 Short pressing to extract stored mode; long press for 3 seconds to store the new mode after adjustment.	DIY 2 Short pressing to extract stored mode; long press for 3 seconds to store the new mode after adjustment.
Flashing for all available colors	3 color jumpy	3 color gradually change	speed +
Smooth for all available colors	7 color jumpy	7 color gradually change	speed-

Key functions for RGBW

Brightness +	Brightness -	Off	On
Static Red	Static Green	Static Blue	Static white (Short press- W switch ON/OFF, long press- W dimming)
Static Yellow	Static Purple	Static Cyan	Static warm white
Color balance in left direction, 1024 colors in total.	Color balance in right direction, 1024 colors in total.	DIY 1 Short pressing to extract stored mode; long press for 3 seconds to store the new mode after adjustment.	DIY 2 Short pressing to extract stored mode; long press for 3 seconds to store the new mode after adjustment.
Flashing for all available colors	3 color jumpy	3 color gradually change	speed +
Smooth for all available colors	7 color jumpy	7 color gradually change	speed-

RF CODE
Receiver can be controlled by any one the same remote as factory default; remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.
Matching code operation
Receiver and Remote Control are coded as default, matching them before using, if unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instructions before using:
Method 1:
1.Step 1: Pressing key “FLASH” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
2.Step 2: Pressing “FLASH” 3times in 3 seconds, corresponding to the operation, the LED’s brightness will change as 25%-10%-back to preset level.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Method 2:
1.Step 1: Power on the controller after well connection.
2.Step 2: 5 seconds long pressing of the “SET” button (on receiver) until the indicator light lights up, pressing “FLASH” (on remote control) 1 time to finish ( “SET” button should be pressed also at the meanwhile), will see the load LEDs flash 3 times by successful operation.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, wall-panel can be controlled by any one the same remote control.
Method 1:
1.Step 1: Pressing key “SMOOTH” and hold on, power on the controller, the load LEDs will be 50%  brightness white as responding.
2.Step 2: Pressing “SMOOTH” 3times in 3 seconds ,corresponding to the operation, the LED’s brightness will change as 25%-10%-back to preset level.
3.Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by any remote control.
4.If not, please re-operate from step 1 to 2.
Method 2:
1.Step 1: Power on the controller after well connection.
2.Step 2: 5 seconds long pressing of the “SET” button (on receiver) until the indicator light lights up, pressing “SMOOTH” (on remote control) 1 time to finish ( “SET” button should be pressed also at the meanwhile), will see the load LEDs flash 3 times by successful operation.
3.Code learning successfully, the receiver only can be controlled by the remote.
4.If not, please re-operate from step 1 to 2.
Typical Applications

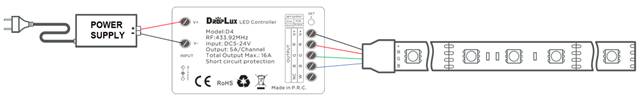

Application Circuit 1: RGB

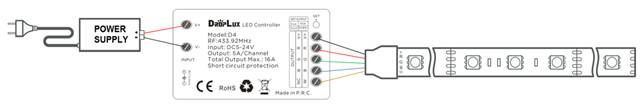

Application Circuit 2: RGBW

Product information for placing order

Product name	Item number
RGB/RGBW 2 in 1 LED controller with RF 24 key remote control	HX-D4
