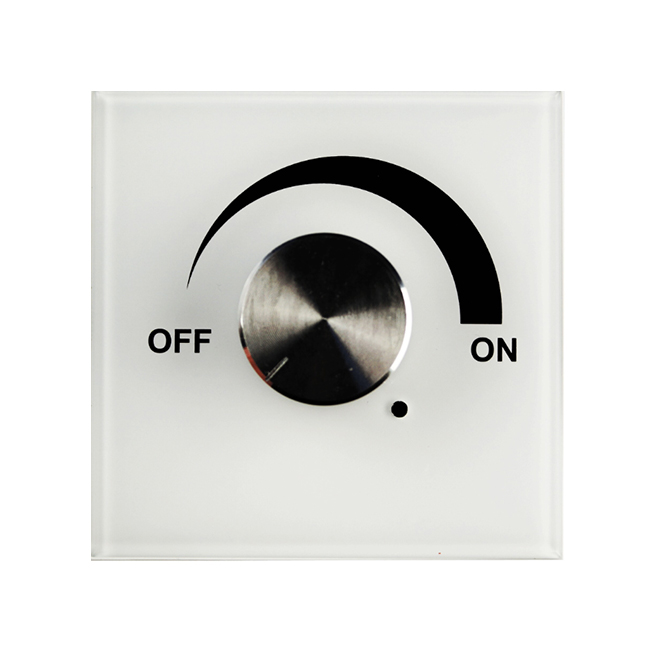

HX-WP86-010D
-
Product Introduction:
Product Details
Product Feature
1.The working voltage is: AC90-265V, do not need to configure the adapter.
2.Output:single 0-10V, Max output current is 100mA, Multiple led lamps can be parallel connected
3.short circuit protection design, automatic recovery after short-circuit fault removal
4.Knob design, simple operation, fashion appearance
5.The structure and dimension according to the 86-type European standards.
Technical specification
Case dimension
Connection diagram
Wall-panel Installation instruction
Direction for use
Wall panel function
Turn the knob clockwise to increase the brightness(OFF-100%),
turn the knob counterclockwise to decrease the brightness(100%-OFF)
Typical Applications
Application Circuit
Related products
Product information for placing order
1.The working voltage is: AC90-265V, do not need to configure the adapter.
2.Output:single 0-10V, Max output current is 100mA, Multiple led lamps can be parallel connected
3.short circuit protection design, automatic recovery after short-circuit fault removal
4.Knob design, simple operation, fashion appearance
5.The structure and dimension according to the 86-type European standards.
Technical specification
| Working temperature | -20-60℃ |
| Supply voltage | AC90V-265V |
| Standby power | <0.3W |
| Max input power | <1.8W |
| Output voltage | 0-10V |
| Max supply current | <0.04A |
| Connection | wiring terminal |
| Max output current | 100mA |
| External dimension | L86*W86*H50 mm |
| Packing size | L106*W106*H66 mm |
| Net weight | 185g |
| Gross weight | 200g |
Connection diagram
Wall-panel Installation instruction
Direction for use
Wall panel function
Turn the knob clockwise to increase the brightness(OFF-100%),
turn the knob counterclockwise to decrease the brightness(100%-OFF)
Typical Applications
Application Circuit
Related products
| Item number | HX-SZ200(0-10V) | Picture |
| Working temperature | -20-60℃ |
 |
| Supply voltage | 12V~24V | |
| Output | 1 channel | |
| External dimension | L127*W42*H33 (mm) | |
| Net weight | 150g | |
| Gross weight | 170g | |
| Output gray | 256 levels | |
| Max. Output current | 25A | |
| 0-10V signal consumption | <0.1mA | |
| Control standard | 0-10V analog signal | |
| Dimming range | OFF-100% | |
| PWM frequency | 490±5Hz |
| Product name | Item number |
| 0-10V wall panel dimmer | HX-WP86-010D |
