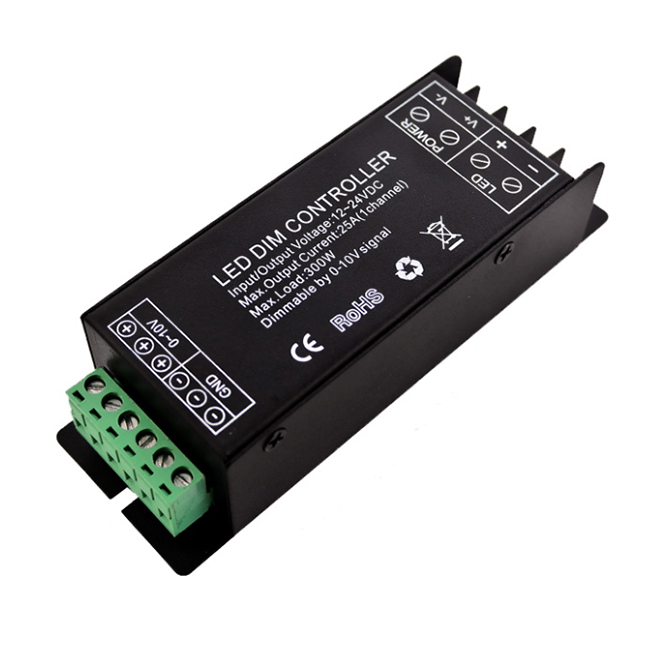

• HX-SZ200 0-10V
HX-SZ200 0-10V
  • Product Introduction:
    LED 0-10V Dimmer 0-10V dimmer adopts the advanced micro control unit, It can receive the 0-10V analog control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. Dimming range from 0-100%, stable and soft.

Product Details

Product Feature
  • Adopt the advanced micro unit.
  • Receive the 0-10V analog control signal which is internationally widely used.
  • PWM control signal to actuate the LED lamp, dimming from 0-100%,stable and soft.
  • PWM signal frequency:2KHz.
  • Output gray,4096 levels.
  • 2-year warranty.
Technical Parameters
Working temperature -20-60℃
Supply voltage 12V~24V
Output 1 channel
External dimension L127*W42*H33 (mm)
Packing size L135*W55*H40 (mm)
Net weight 150g
Gross weight 170g
Output gray 4096 levels
Max. Output current <25A
Control standard 0-10V analog signal
0-10V signal consumption <0.1mA
Dimming range 0-100%
PWM frequency 2KHz
Interface Specifications
0-10V analog signal input/output interface:

Adopt screw terminals.

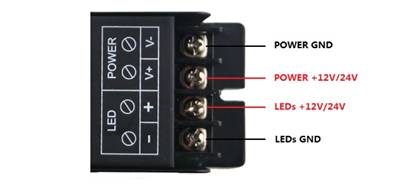

Power and Payload interface:

Adopt screw terminals.

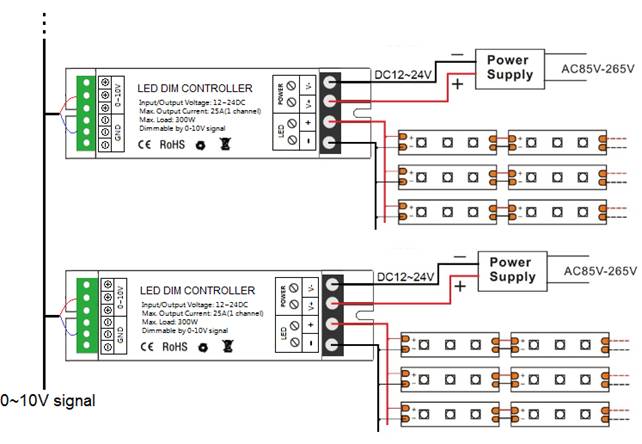

Typical Applications

Product information for placing order
Product name Item number
LED 0-10V Dimmer HX-SZ200(0-10V)
