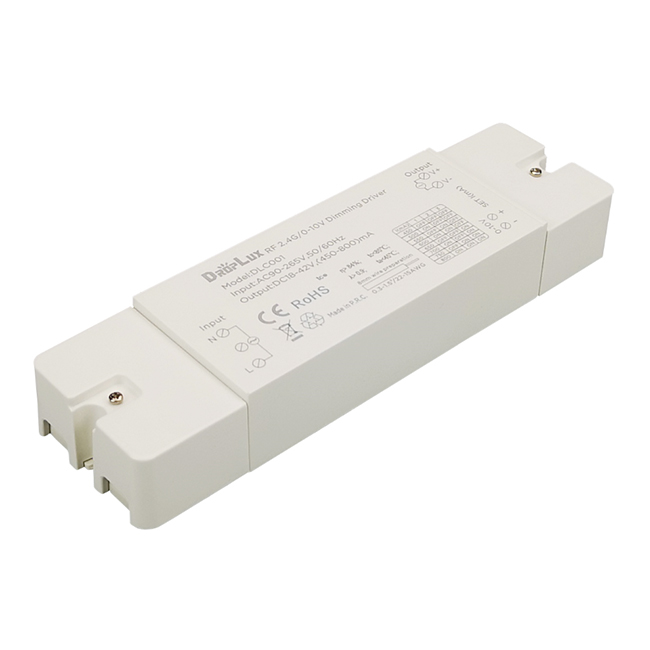

• DLC001_V2.0
  • Product Introduction:
    2.4G Wireless Self-inspection Sync Dimming Constant Current Driver (DIM)

Product Details


1) Isolated power supply
2) Adopt PWM technology
3) High efficiency/High PF/ flicker-free
4) With Power off memory function
5) RF wireless / 0-10V wired control 2 in 1
6) High quality smooth dimming锛1024 grades锛
7) Over loading, over voltage, short circuit protection
8) 2.4GHz wireless control锛孉ir Self-inspection Sync control
9) With TUYA-2.4G converter module, it can realize mobile phone intelligent lighting system control
10) Applicable lamps: LED panel, LED ceiling lamps, LED down light and others constant current lights
11) Applicable place: Home, Shop, Hotel, Office and so on household/commercial indoor lighting
12) Certification: CE/R&TTE/LVD/Rohs
13) Warranty 3 years

Technical Parameters

Electrical Performance Test are all in 25鈩±10% temperature environment锛230VAC/50HZ input
Factor Index Parameter
Type Isolated Class II
Certification CE
Remote Control RF Frequency 2.4GHz
Distance 30m
Memory Function Yes
0-10V Signal Connector 2Pin
Wire 22-14 AWG
Input Input Connector 3Pin, L/N
Wire 26-16 AWG
Voltage Range 90-264VAC
Frequency Range 47-63Hz
Rate Current 0.18A
Power Factor锛圥F锛 0.9锛坒ull load锛
THD 19%
Overall Efficiency 84%(full load)
Standby Power ≤0.8W
Surge Voltage 3KV
Surge Current 40A (230VAC)
  Output Connector 2Pin, V+/V-
Output Wire 22-12AWG
Output Voltage Range 18V-42VDC
String Number 6-12 string
Output Current 450mA-800mA (settable by DIP switch)
MAX Output Power 32W
Current accuracy ±5%
PWM Signal Output Frequency 1KHz
Dimming Grade 1024
Dimming Range 3-100%
Video effect Free-flicker
Protection IP IP40
Over Voltage Protection (OVP) Yes锛坲p to 53V锛
Short Circuit Protection (SCP) Yes (restore output automatically after short circuit remove)
Overpower Potection (OPP) Yes (up to 40W)
Reliability Storage temperature -40~85鈩(relative hnmidity 20%鈥90% non-condensing)
Working Temperature Ta -20锝45鈩
Case Max Working Temperature Tc 85鈩 (working temperature 45鈩冿紝Max power)
Life 4800 hours (25鈩±10% temperature environment锛230VAC input, 100% LOAD)
Warranty 3 years
Safety and EMC Certification CE鈥怢VD EN61347鈥1銆丒N61347鈥2鈥13
Electromagnetic Compatibility CE鈥怑MC EMI锛圗N55015锛
Hi-Pot  Test I/P-O-P:3.75KVDC
Others Product G.W. 162g
Product Size L163*W46*H25mm

Port Instruction

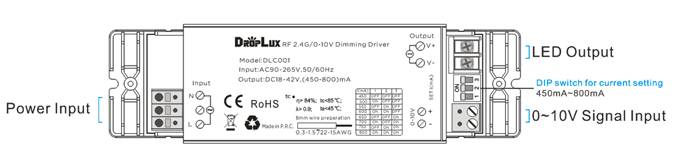

DIP switch & current

450mA 500mA 550mA 600mA 650mA 700mA 750mA 800mA
Product Compatibility锛圓pplicable for remote锛
Item锛欻X-RFBT-2.4G锛1 zone锛 Item锛欻X-RFBT10-2.4G (4 zone) Item锛欻X-RFBT12-2.4G锛1 zone锛
Item: HX-RFBT15锛1 zone锛 Item: HX-HWP86-CCT-4S锛4 zone锛 Item: HX-HWP86-XSP锛4 zone锛
Item: HX-HWP86-SR锛圥IR/Lux-sensor锛 Item: HX-WP86-AP (RF signal repeater) Item: HX-TUYA-2.4G-CCT

Typical Applications

1) Compatible with a variety of models of remote control at the same time, could be matched according to project situation

2) Wireless-synchronization function
Receivers which with wireless-synchronization functions will transmit the control signals from the remote control and self-inspection the work statues for each other, so multiple receivers in same zone will wireless-sync-work completely, not only static mode but also dynamic mode, to achieve wired-like operation experience. The distance up to 20 meters between remote control to receiver, and up to 10 meters between 2 receivers. RF wireless signal repeater is suggested in over range distance or when the workable distance is shorter by the materials of space, the effective range up to 30 meters.

3) 1 zone remote typical application, multi drivers could be wireless-sync controlled by the same one remote control.

4) 4 zones remote typical application, multi drivers could be controlled in each zone. 4 zone could be respectively and allover controlled

5) With TUYA-2.4G converter module, it can realize mobile phone intelligent lighting system control


1) If the lamp turned off by remote control, it also can restart the lamp directly by the AC power switch(No-flicker driver need to restart after turn off the power switch and discharge for 5s.
2) If the lamp is light up without any operation in 167 hours, the driver will turn off the lamp automatically. It will recount the time if there is any operation from power switch or remote control.
3) Memory function, each time power-on reserve the mode which stop in the last power-down.
4) For operations and precautions related to lighting system settings, please refer to the operating instructions of the relevant remote control.
