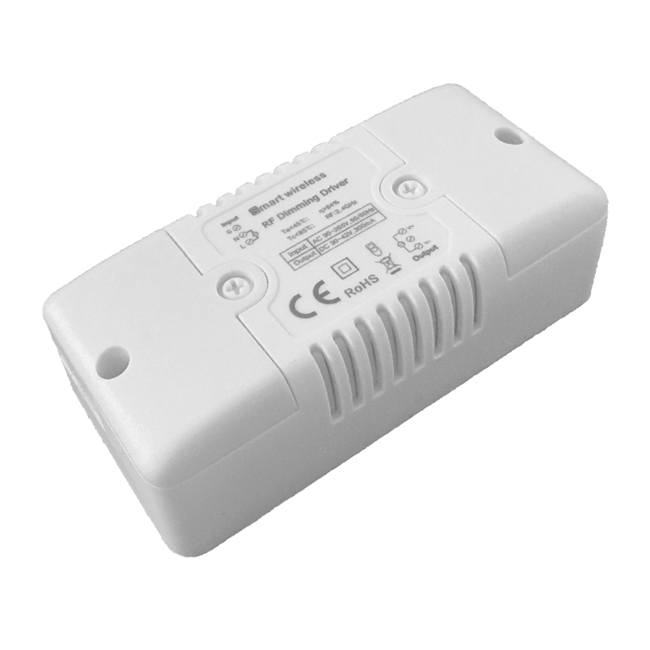

Features

1) Isolated driver
2) Adopting advanced PWM technology
3) Higher efficiency, non-flicker
4) Short-circuit protection, overvoltage protection
5) High-quality delicate & soft dimming effect
6) Memory function
7) 2.4GHz wireless remote control, Air Self-inspection Sync control
8) With TUYA-2.4G converter module, realized phone, PAD, WIFI smart control
9) Designed for constant current single color LED Light Fixtures: like LED panel, LED ceiling lamps, LED down light etc.
10) Widely used for intelligent household/commercial indoor lighting, like mall, hotel, office indoor lighting design.
11) Certificate: CE/EMC/RED/RoHS
12) 3 years warranty

Technical Parameters

Electrical performance tests based on condition of ambient temperature:25 ° C ± 10%, and 230VAC / 50HZ input
Factor	Index	Parameter		Marks
Type	Isolated	CLASS II
	Certification standards	CE ROHS
Control Method	Remote control	2.4GHz RF
	Distance	Up to 30m
	Memory function	Yes
Input	Voltage range	90-264VAC		90-264VAC
	Frequency range	47-63Hz		47-63Hz
	输入         Rated current	0.11A（full load）		230V AC
	Surge voltage	3KV
	Surge current	＜69A		230V AC
	Standby power	≤0.9W		OFF state
	Efficiency	>83%( full load)
	Port	Three lines input（L/N/FG）		L/N/FG, FG as optional
Output	Port	Two lines output
	Voltage range	30-42V DC
	Led string	10-12 LEDs
	Output current	130-300mA
	Max. output watt	12W
	Current Accuracy	±5%
	Dimming range	3-100%		3-100%
	Camera effect	non-flicker		non-flicker
	Adjustment levels	1024
Reliability	Power supply solution	isolated power supply		isolated power supply
	Ambient temperature Ta	-20～45℃		-20～45℃
	Case temperature Tc	85℃ ( based on work environment temperature at 45℃, And Max power supply)		85℃ ( based on work environment temperature at 45℃, And Max power supply)
	Storage temperature	-40～85℃ (relative humidity 20%‐90% non-condensing)		-40～85℃ (relative humidity 20%‐90% non-condensing)
	Life time	50000hours		based on work environment temperature 25℃±10%，230VAC input
Safety  and EMC	CE‐LVD	EN61347-1、EN61347-2-13
	CE‐EMC	EMI（EN55015）
	Withstand voltage	I/P-O-P:3.75KVAC  (I/P-FG)1.5KVAC  (O/P-FG) 1.5KVAC
protection	Dustproof waterproof level	IP40
	Over voltage protection	Yes	Maximum 44V
	Short-circuit protection	Yes	Into the intermittent mode when short circuit, short circuit relieve automatically restore the output
	Over power protection	Yes	120% rated output power
Others	N.W	75g
	G.W	83g
	Product dimensions	L75*W38*H19mm
	Packing dimensions	L90*W45*H28mm

Main-product code and Parameters

Model	Rate Power	Rate Current/CH	Voltage Range	Series LED
HDT/HDBT/HDWP86/HDBK-12-030	12W	300mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-11-028	11W	280mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-11-027	11W	270mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-10-026	10W	260mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-10-025	10W	250mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-10-024	10W	240mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-09-023	9W	230mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-09-022	9W	220mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-08-020	8W	200mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-07-018	7W	180mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-06-016	6W	160mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-06-015	6W	150mA	30-42V DC	10～12 string
HDT/HDBT/HDWP86/HDBK-05-013	5W	130mA	30-42V DC	10～12 string

Remark：Please confirm with Hoion for other parameters

（Three lines output, common anode）

Wire specifications recommend：
Input wire：three-core PVC plastic wire H05VV-F ，diameter =0.72mm，VDE certificate，core 3*1.0mm2. 300/500V，Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.
Output wire：three-core PVC plastic wire，diameter =0.5mm. Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.


Product compatibility（Remote control optional）

Item：HX-RFBT-2.4G（1 zone）	Item：HX-RFBT10-2.4G (4 zone)	Item：HX-RFBT12-2.4G（1 zone）
Item: HX-RFBT15（1 zone）	Item: HX-HWP86-CCT-4S（4 zone）	Item: HX-HWP86-XSP（4 zone）
Item: HX-HWP86-SR（PIR/Lux-sensor）	Item: HX-WP86-AP (RF signal repeater)	Item: HX-TUYA-2.4G-CCT

Typical Applications

1) Compatible with a variety of models of remote control at the same time, could be matched according to project situation

2) Wireless-synchronization function
Receivers which with wireless-synchronization functions will transmit the control signals from the remote control and self-inspection the work statues for each other, so multiple receivers in same zone will wireless-sync-work completely, not only static mode but also dynamic mode, to achieve wired-like operation experience. The distance up to 20 meters between remote control to receiver, and up to 10 meters between 2 receivers. RF wireless signal repeater is suggested in over range distance or when the workable distance is shorter by the materials of space, the effective range up to 30 meters.

3) 1 zone remote typical application, multi drivers could be wireless-sync controlled by the same one remote control.

4) 4 zones remote typical application, multi drivers could be controlled in each zone. 4 zone could be respectively and allover controlled

5) With TUYA-2.4G converter module, it can realize mobile phone intelligent lighting system control

Tips:

1) If the lamp turned off by remote control, it also can restart the lamp directly by the AC power switch(No-flicker driver need to restart after turn off the power switch and discharge for 5s.
2) If the lamp is light up without any operation in 167 hours, the driver will turn off the lamp automatically. It will recount the time if there is any operation from power switch or remote control.
3) Memory function, each time power-on reserve the mode which stop in the last power-down.
4) For operations and precautions related to lighting system settings, please refer to the operating instructions of the relevant remote control.
