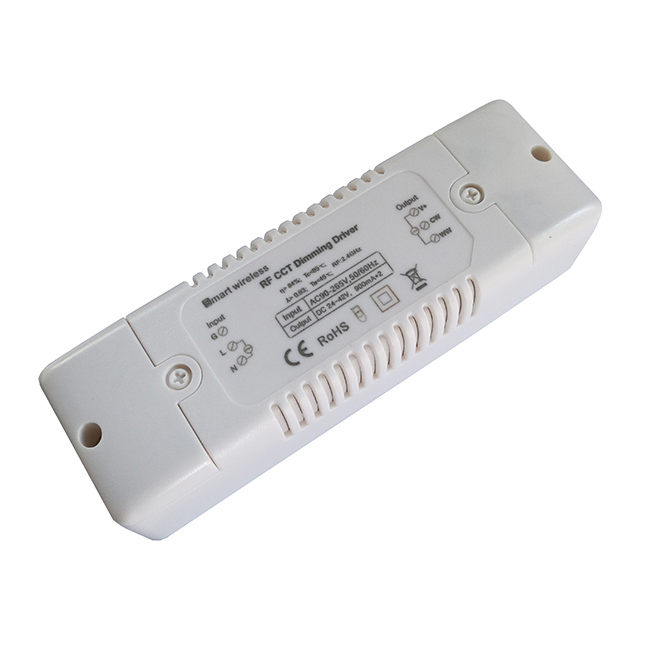

• 2.4G HC-X Driver(13-38W) V1.1.1
2.4G HC-X Driver(13-38W) V1.1.1
  • Product Introduction:
    2.4G Wireless Air Self-inspection Sync CCT Constant Current dimming Driver

Product Details

Features

1)Isolated driver
2) Adopting advanced PWM technology
3) Higher efficiency, high PF, non-flicker
4) Short-circuit protection, overvoltage protection
5) High-quality delicate & soft dimming effect(4096 level)
6) Memory function
7) 2.4GHz wireless remote control, Air Self-inspection Sync control
8) Compatible with Freelighting APP control system, achieve WIFI intelligent control by your mobile phone.
9) Designed for constant current CW+WW LED Light Fixtures: like LED panel, LED ceiling lamps, LED down light etc.
10) Widely used for intelligent household/commercial indoor lighting, like mall, hotel, office indoor lighting design.
11) Certificate: CE/EMC/RED/RoHS
12) 3 years warranty


Technical Parameters

Electrical performance tests based on condition of ambient temperature:25 ° C ± 10%, and 230VAC / 50HZ input
Factor Index 38W 25W
Input Voltage range 90-264VAC 90-264VAC
Frequency range 47-63Hz 47-63Hz
输入         Rated Current 0.23A(full load) 0.25A(full load)
Surge current <50A <62A
Standby power ≤1.3W ≤0.7W
Efficiency >85%( full load) >83%( full load)
Power factor(PF) ≥0.91 0.5
Port Three lines input(L/N/FG) Three lines input(L/N/FG, FG as optional)
Output No-Load Voltage 53V 23V(12-21V ),44V(24V-42V)
Voltage range 18V-42VDC 12-21V or 24V-42VDC
Led string 6-12 LEDs 5-6 LEDs or 9-12 LEDs
Rated Current 650mA-900mA 300mA-1000mA /300mA-600mA
Maximum power supply 38W(CW+WW) 25W(CW+WW)
Current Accuracy ±5% ±5%
PWM frequency 3KHz 1KHz
Dimming level 1024 1024
Dimming range 3-100% 3-100%
Camera effect non-flicker non-flicker
Port Three lines output, common anode Three lines output, common anode
Reliability Power supply solution isolated power supply isolated power supply
Ambient temperature Ta -20~45℃ -20~45℃
Case temperature Tc 85℃
( based on work environment temperature at 45℃, And Max power supply)
85℃
( based on work environment temperature at 45℃, And Max power supply)
Storage temperature  -40~85℃
(relative humidity 20%‐90% non-condensing)
-40~85℃
(relative humidity 20%‐90% non-condensing)
Life time 31000hours(  based on work environment temperature 25℃±10%,230VAC input,Maximum power load,Case temperature 72℃) 50000 hours(  based on work environment temperature 25℃±10%,230VAC input,Maximum power load,Case temperature 65℃)
Warranty 3years 3years
Safety  and
EMC
CE‐LVD EN61347-1、EN61347-2-13
CE‐EMC EMI(EN55022、EN61000-3-3)
EMS(EN55024、EN61000-4-2,3,4,5,6,11)
Withstand voltage I/P-O-P:3.75KVAC  (I/P-FG)1.5KVAC  (O/P-FG) 1.5KVAC
Insulation resistance ≥100MΩ( based on environment temperature at25℃±10℃,relative humidity below 70%, applied voltage at 500VDC between: input and output, input and GND, output and GN, time is 60s.
protection Dustproof waterproof level IP40 IP40
Overvoltage protection Yes(Maximum 53V) Yes(Maximum 44V)
Short-circuit protection Yes (Into the intermittent mode when short circuit, short circuit relieve automatically restore the output) Yes (Into the intermittent mode when short circuit, short circuit relieve automatically restore the output)
Others Frequency of RF remote control 2.4GHz 2.4GHz
Remote control distance 30m 30m
Memory function Yes Yes
G.W 165g 140g
Product dimensions L135*W45*H31mm L115*W45*H31mm
Packing dimensions L140*W48*H35mm L140*W48*H35mm
  Remark the sum current of two channels for CCT driver don’t exceed the maximum value of single channel current, that is, the maximum brightness is : 50%CW+50%WW.

Case temperature TC and driver life curve

1)38W drivers

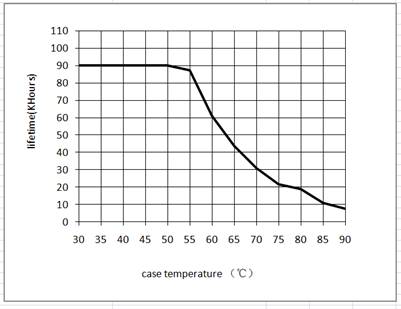

Figure 1  The life time for 38W drivers when Tc at 40℃,50℃,60℃,70℃,80℃,90℃


 2)25Wdrivers

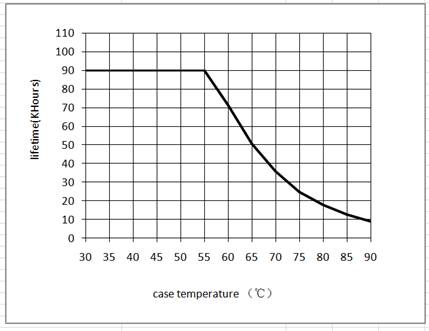

Figure 2  The life time for 25W drivers when Tc at 40℃,50℃,60℃,70℃,80℃,90℃


3KV Surge Testing

Angel Positive or Negative Times Pass/Fail
0 + 5 Pass
0 - 5 Pass
90 + 5 Pass
90 - 5 Pass
180 + 5 Pass
180 - 5 Pass
270 + 5 Pass
270 - 5 Pass

Main-product code and Parameters

1)38W regular models and parameters

Models Watt Output current Output voltage Led string
HCT/HCBT/HCWP86/HCWP120/HCBK-38-090 38W 900mA 18-42V DC 6~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-36-085 36W 850mA 18-42V DC 6~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-34-080 34W 800mA 18-42V DC 6~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-32-075 32W 750mA 18-42V DC 6~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-30-070 30W 700mA 18-42V DC 6~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-27-065 27W 650mA 18-42V DC 6~12 LEDs
2)25W regular models and parameters

Models Rated power Rated current per channel Voltage range Led string
HCT/HCBT/HCWP86/HCWP120/HCBK-25-060 25W 600mA 24-42V DC 8~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-21-050 21W 500mA 24-42V DC 8~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-19-045 19W 450mA 24-42V DC 8~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-17-040 17W 400mA 24-42V DC 8~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-15-035 15W 350mA 24-42V DC 8~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-13-030 13W 300mA 24-42V DC 8~12 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-21-100 21W 1000mA 12-21V DC 4~6 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-19-090 19W 900mA 12-21V DC 4~6 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-17-080 17W 800mA 12-21V DC 4~6 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-15-070 15W 700mA 12-21V DC 4~6 LEDs
HCT/HCBT/HCWP86/HCWP120/HCBK-13-060 13W 600mA 12-21V DC 4~6 LEDs
Remark:Please confirm with Hoion for other parameters

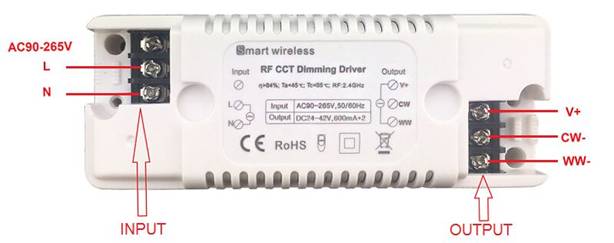

Interface Specification

(Three lines output, common anode)

Wire specifications recommend
Input wirethree-core PVC plastic wire H05VV-F ,diameter =0.72mm,VDE certificate,core 3*1.0mm2. 300/500V,Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.
Output wirethree-core PVC plastic wire,diameter =0.5mm. Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.



Product compatibility(Remote control optional)

Item:HX-RFBT-2.4G(1 zone) Item:HX-RFBT10-2.4G (4 zone) Item:HX-RFBT12-2.4G(1 zone)
Item: HX-RFBT15(1 zone) Item: HX-HWP86-CCT-4S(4 zone) Item: HX-HWP86-XSP(4 zone)
Item: HX-HWP86-SR(PIR/Lux-sensor) Item: HX-WP86-AP (RF signal repeater) Item: HX-TUYA-2.4G-CCT

Typical Applications

1) Compatible with a variety of models of remote control at the same time, could be matched according to project situation

2) Wireless-synchronization function
Receivers which with wireless-synchronization functions will transmit the control signals from the remote control and self-inspection the work statues for each other, so multiple receivers in same zone will wireless-sync-work completely, not only static mode but also dynamic mode, to achieve wired-like operation experience. The distance up to 20 meters between remote control to receiver, and up to 10 meters between 2 receivers. RF wireless signal repeater is suggested in over range distance or when the workable distance is shorter by the materials of space, the effective range up to 30 meters.

3) 1 zone remote typical application, multi drivers could be wireless-sync controlled by the same one remote control.

4) 4 zones remote typical application, multi drivers could be controlled in each zone. 4 zone could be respectively and allover controlled

5) With TUYA-2.4G converter module, it can realize mobile phone intelligent lighting system control

Tips:

1) If the lamp turned off by remote control, it also can restart the lamp directly by the AC power switch(No-flicker driver need to restart after turn off the power switch and discharge for 5s.
2) If the lamp is light up without any operation in 167 hours, the driver will turn off the lamp automatically. It will recount the time if there is any operation from power switch or remote control.
3) Memory function, each time power-on reserve the mode which stop in the last power-down.
4) For operations and precautions related to lighting system settings, please refer to the operating instructions of the relevant remote control.
