HX-D01X series wifi led controller
  • Product Introduction:

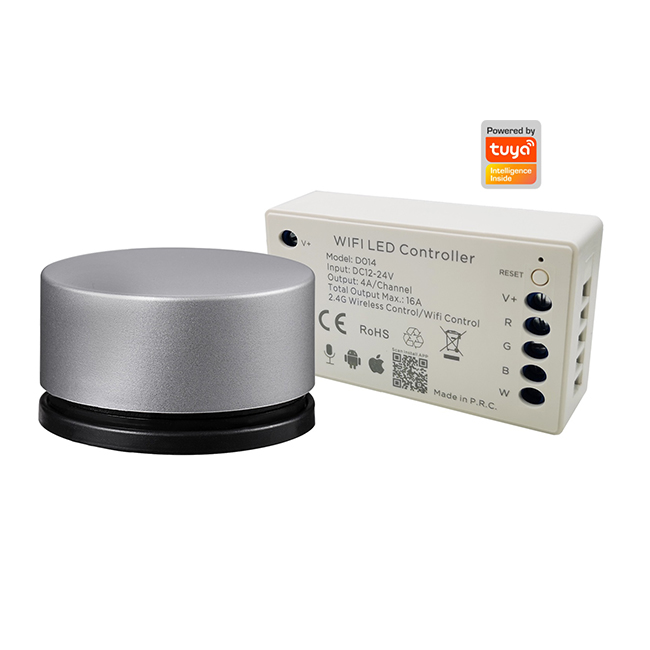

    D01X series WIFI led controller for DIM/CCT/RGB/RGBW Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on. D011 for single color, D012 for dual white, D013 for RGB, D014 for RGBW. The WIFI control technology powered by Tuya.

Product Details

Product Features
  • WIFI technology powered by Tuya.
  • Short-circuit protection.
  • DC12-24V, four channels output, Max. load current: 4CH*4A; Max. load power: 192W/12V; 384W/24V.
  • RF remote control is optional, compatible remote control item: RFBT15.
  • Memory function, each time power-on reserve the mode which stop in the last power-off.
  • Designed for constant voltage LED lights, D011 for single color, D012 for dual white, D013 for RGB, D014 for RGBW.
  • Warranty of this product is three years, exclude the artificial situation of damaged or overload working.
Technical Parameters
Controller
Working temperature -20-60℃ Supply voltage DC12V-24V
Static power consumption <1W Connecting mode Common anode
Grayscale 1024 levels Speed stage 1024 levels
External dimension L70*W40*H20 mm Packing size L95*W47*H33mm
Net weight 65g Gross weight 80g
RF frequency 2.4GHz RF distance ≤20m
Short circuit protection Yes Memory function Yes
Output 4 channels Output current ≤4A(each channel)
PWM frequency 1KHz Max. Output power 12V:<192W, 24V:<384W
Remote control (optional)
Working temperature -20-60℃ Working voltage 3V(AAA*2PCS)
Sleep current <25uA Emission current <17mA
Sleep power consumption <75uW Emission power consumption <51mW
Net weight 80g Dimension Φ60*35mm
RF distance ≤30m RF frequency 2.4GHz
Accessories holder 1pc, 3M foam sponge glue 1pc.
Dimensions

Interface Specifications
D011:V+, W, W, W, W

D012:V+, CW, WW, CW, WW

D013:V+, R, G, B

D014:V+, R, G, B, W

Remote Control Function

DIM (work with single color receiver), item: D011
ON/OFF: Short-click
Adjusting brightness: Rotating / Pressing+Rotating (Turning from modes to adjust brightness:)
Modes: Double-short-click
Modes list
No. Mode Marks
1 Flash Rotating to adjust the speed
2 Fade
CCT(work with CW+WW receiver) , item: D012
ON/OFF: Short-click
Adjusting brightness: Rotating/ Pressing+Rotating (Turning from modes to adjust brightness:)
Adjusting CCT: Pressing+Rotating
Modes: Double-short-click
Modes list
No. Mode Marks No. Mode Marks
1 WW+CW flash Rotating to adjust the speed 3 WW/CW flash in turn Rotating to adjust the speed
2 WW+CW fade 4 WW/CW fade in turn
RGB(work with RGB receiver), item: D013
ON/OFF: Short-click
Adjusting brightness/speed: Rotating
Adjusting color: Pressing+Rotating
Modes: Double-short-click
Modes list
No. Mode Marks No. Mode Marks
1 3 colors flash Rotating to adjust the speed 5 White flash Rotating to adjust the speed
2 7 colors flash 6 White fade
3 3 colors fade 7 Red-blue fade
4 7 colors fade 8 Green-blue fade
RGBW(work with RGBW receiver) , item: D014
ON/OFF: Short-click
RGB/W switching: 2s-long-pressing
Adjusting brightness/speed: Rotatin
Adjusting color: Pressing+Rotating
Modes: Double-short-click
Hotkey: 3 times-short-click to overall ON/OFF
Modes list
No. Mode Marks No. Mode Marks
1 3 colors flash Rotating to adjust the speed 5 White flash Rotating to adjust the speed
2 7 colors flash 6 White fade
3 3 colors fade 7 Red-blue fade
4 7 colors fade 8 Green-blue fade
Direction for use
WIFI controlled by Tuya Application to achieve smart control like group control, scene control, timer control, music control and so on.
Scan QR code from controller to download Tuya application:      (Tuya).
Long pressing “Reset” button on controller and hold for 5 seconds to start the connection with APP. Please read operation instruction of App, or following the pop-up prompt message with the APP, to finish the rest connection operation.
And compatible with voice control via Amazon Alexa, Google Assistant, Yandex Alice and so on.
Remote controlled by RFBT15
Please pair the controller to RFBT15 remote control before using. The operation instruction and functions can be find from manual of RFBT15 remote control.
Typical Applications
Application Circuit of D011: single color

Application Circuit of D012: CW+WW

Application Circuit of D013: RGB

Application Circuit of D014: RGBW

Product information for placing order
Product name Item number
D01 series WIFI led controller for DIM/CCT/RGB/RGBW Single color: D011
Dual white: D012
RGB: D013
RGBW:D014
Remote control(optional): HX-RFBT15
