• HX-LDC-A01(EN) 20190524
HX-LDC-A01(EN) 20190524

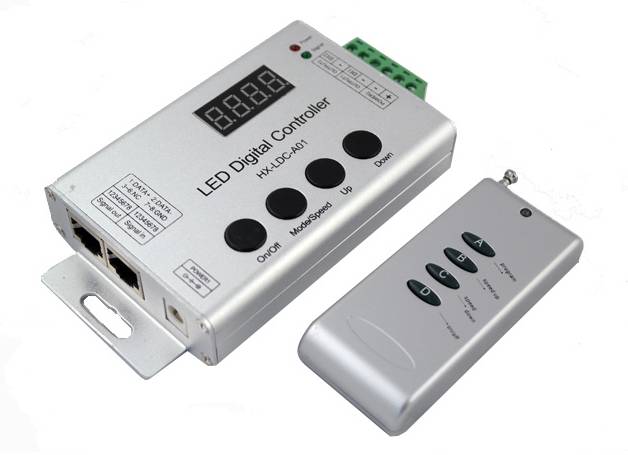

  • Product Introduction:

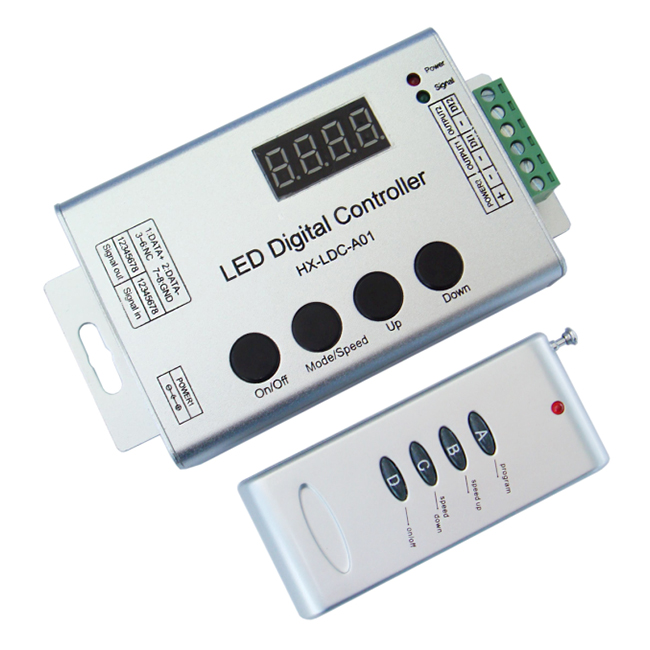

    Wireless Digital-strip LED Controller Wireless Digital-strip LED Controller (HX-LDC-A01) is suit for UCS1903 (TM1804 etc) output applications which drive LED directly. It is widely used in advertising, stage sets, home decorations, etc. It has many advantages such as low price, easy connection, simplicity to use and memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. It can also be used as

Product Details

Product Feature
  • The suitable IC contains: USC1903, TM1803, TM1804, TM1809 , TM1812 and etc.
  • Colorful control effect, there are 133 modes in total. The 132nd mode is the auto-cycle running from 1st to 131st. The 133rd mode is the DIY mode.
  • 2 groups SPI signal output, each group signal drive 2048 pixels in the Max. For example, one group can drive 200 meters DC12V USC1903 strip in the Max.
  • It is convenient to using RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips.
  • 2-year warranty.
Technical Parameters:
Working temperature -20-60℃
Supply voltage DC12V-24V
Current <60mA
External dimension L137*W70*H25 mm
Packing size L137*W80*H54mm
Net weight 180g
Gross weight 270g
Effects model 133
Maximum control points 1024 (Low-speed) points, 2048 (High-speed) points
Controlled IC Model TM1803, TM1804, TM1809 , TM1812, UCS1903 etc.
Interface Specifications

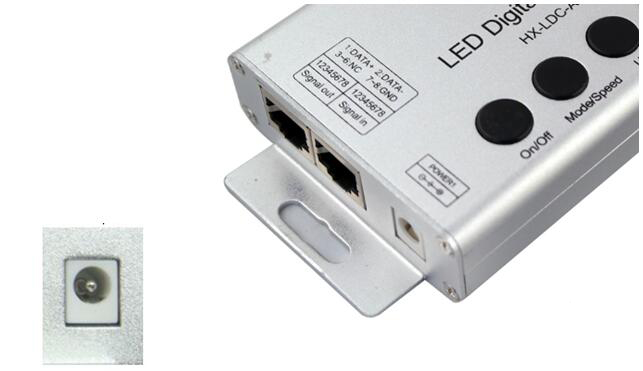

Power input interface (port 1):

adopt conventional power transponson as a DC power input interface.

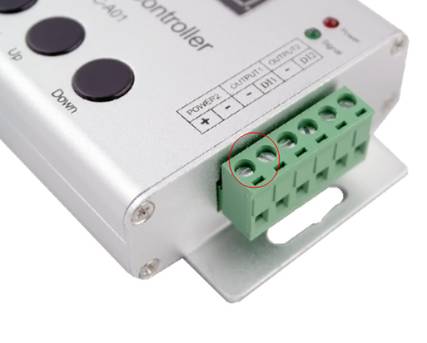

Power Input Interface(port2):

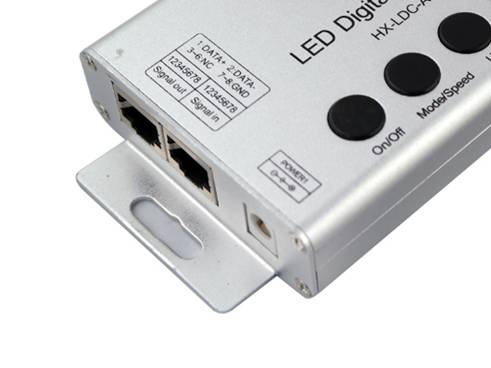

synchronization interface:
adopt standard network line interface,

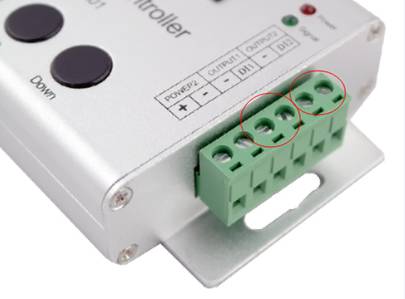

Signal output interface, adopt male and female connector with screws

 Direction for use
  • Connect the load wire well at first, followed by the power wire; Please ensure short circuit can not occur between connecting wires before you turn on the power. Then set the steps as follows.
  • Press "On / off" button to turn off controller before setting the menu.
  • Press “up”, “down” button one time (two buttons together), LED strip will light up at the moment, means device into setting state successfully. Then press the "Mode / Speed" button to get into the menu settings screen.
  • The first setting screen is for “Control points setting”. The LED display 4-digit is for the number of control points. To plus or minus the number by pressing the “up” and “down” button (Long pressing can adjust quickly). The factory default is “0050”(50 points).
  • Continue to press the "Mode / Speed" button will show “S-HI”, means for high-speed type IC (like USC1903,WS2811 etc.) only.
  • After setting well, press the "On / off" button to save and exit.
  • There are 4 buttons in total on the control panel, function of each button as below:

  • On/offIt can open or close output.
  • Mode/Speed Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
  • UPMode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
  • DOWN:Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.

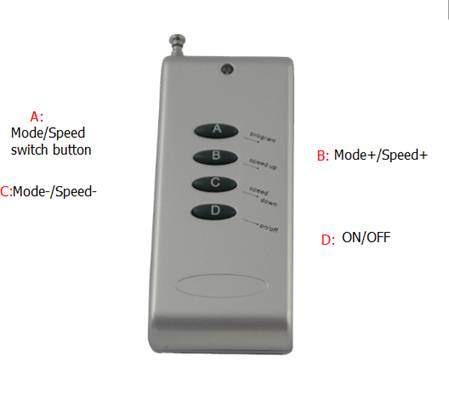

  • Adopt wireless control method, 4keys in total, function of each key as below::

  • A: Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
  • BMode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
  • C:Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
  • DOn/Off button: It can open or close output.
  • Note: After powering, the red light would bright. And each press, the green light flash one time.
  • Synchronous controller system description
Synchronous control system can be made of any number of controller connections. Each of the sub-controller would follow to the first master controller to achieve a permanent synchronous change. And there is not delay.
After connecting the wiring diagram, the sub-controller need not be set. It will be in accordance with the master to controlling the speed and mode change. (That would be not synchronous when powering. You could close and open to be synchronous) When master is working, and the sub-control working well, the green signal light of sub-control would flick. The digital LED display the mode in operation.
●Standard color changes as follows:

NO.

Function Description

NO.

Function Description
1 Static red 2 Static green
3 Static blue 4 Static yellow
5 Static cyan 6 Static purple
7 Static white 8 Three color jumpy change
9 Seven color jumpy change 10 Seven color stroboflash
11 Red horse race lamp to right direction 12 Purple horse race lamp to left direction
13 Blue horse race lamp to right direction 14 Cyan horse race lamp to left direction
15 Seven color cycling horse race lamp to right direction 16 Seven color cycling horse race lamp to left direction
17 Seven color horse race lamp back-for-ward direction 18 Seven color horse race lamp to left direction
19 Seven color jumping horse race lamp to right direction 20 Three color gradually change
21 Seven color gradually change 22 Red background scan lamp back-for-ward direction
23 Green background scan lamp back-for-ward direction 24 Blue background scan lamp back-for-ward direction
25 Yellow background scan lamp back-for-ward direction 26 Cyan background scan lamp back-for-ward direction
27 Purple background scan lamp back-for-ward direction 28 White background scan lamp back-for-ward direction
29 Seven color scan lamp back-for-ward direction 30 Red water move to right direction
31 Red water move to left direction 32 Green water move to right direction
33 Green water move to left direction 34 Blue water move to right direction
35 Blue water move to left direction 36 Yellow water move to right direction
37 Yellow water move to left direction 38 Cyan water move to right direction
39 Cyan water move to left direction 40 Purple water move to right direction
41 Purple water move to left direction 42 White water move to right direction
43 White water move to left direction 44 Seven color cycling water move to right direction
45 Seven color breathing lamp back-for-ward direction 46 Red trail to left single direction
47 Purple trail to left single direction 48 Blue trail to left single direction
49 Cyan trail to left single direction 50 White trail to left single direction
51 Green trail to left single direction 52 Yellow trail to left single direction
53 Seven color jumping trail to left single direction 54 Seven color queue trail to left single direction
55 Seven color alternation trail to left single direction 56 Red trail to right single direction
57 Purple trail to right single direction 58 Blue trail to right single direction
59 Cyan trail to right single direction 60 White trail to right single direction
61 Green trail to right single direction 62 Yellow trail to right single direction
63 Seven color jumping trail to right single direction 64 Seven color queue trail to right single direction
65 Seven color alternation trail to right single direction 66 Red water trail to right direction
67 Purple water trail to right direction 68 Blue water trail to right direction
69 Cyan water trail to right direction 70 White water trail to right direction
71 Green water trail to right direction 72 Yellow water trail to right direction
73 Seven color jumping water trail to right direction 74 Seven color queue water trail to right direction
75 Seven color alternation water trail to right direction 76 Red trail to left double direction
77 Purple trail to left double direction 78 Blue trail to left double direction
79 Cyan trail to left double direction 80 White trail to left double direction
81 Green trail to left double direction 82 Yellow trail to left double direction
83 Seven color jumping trail to left double direction 84 Seven color queue trail to left double direction
85 Seven color alternation trail to left double direction 86 Red trail to right double direction
87 Purple trail to right double direction 88 Blue trail to right double direction
89 Cyan trail to right double direction 90 White trail to right double direction
91 Green trail to right double direction 92 Yellow trail to right double direction
93 Seven color jumping trail to right double direction 94 Seven color queue trail to right double direction
95 Seven color alternation trail to right double direction 96 Full color wave to right direction
97 Seven color water move to left direction 98 Purple background trail to right double direction
99 Blue background trail to right double direction 100 White background trail to right double direction
101
A3
Cyan background trail to right double direction 102 Green background trail to right double direction
103 Yellow background trail to right double direction 104 Seven color background trail to right double direction
105 Seven color spread from the middle to both sides 106 Seven color breathing from the middle to both sides
107 Seven color draw curtain 108 Seven color lower curtain
109 Seven color spread from both sides to the middle 110 Colorful switch
111 Seven color overlay to right direction 112 Seven color overlay to left direction
113 Seven color overlay to left and right direction 114 Seven color background overlay to double direction
115 Seven color overlay from middle to both sides 116 Seven color background overlay middle to both sides
117 Seven color overlay from both sides to middle 118 Seven color background overlay both sides to middle
119 Sub seven color move back-for-ward direction 120 Sub seven color jump and move back-for-ward
121 Sub seven color background move back-for-ward 122 Sub seven color background move single direction
123 Sub seven color overlay to left and right direction 124 Sub seven color background overlay to left and right
125 Sub seven color spread to single direction 126 Sub seven color spread back-for-ward
127 Sub seven color water move to left and right 128 Sub seven color spread from middle to both sides
129 Sub seven color stretch from middle to both sides 130 Sub seven color stretch to single direction
131 Sub seven color overlay to single direction 132 Auto play circularly
133 Custom combination mode
Typical Applications

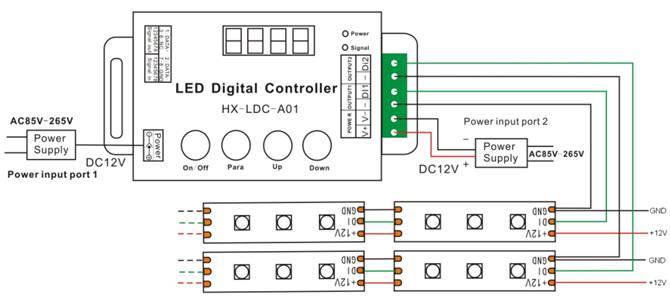

Application Circuit1:

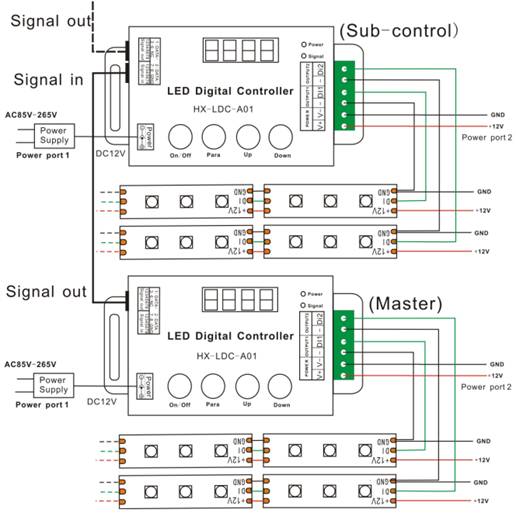

 Application Circuit2, (Each controller can be individually powered, can also share power) Application of synchronization:

(Bus connection)
Product information for placing order
Product name Item number
Wireless Symphony LED Controller HX-LDC-A01
