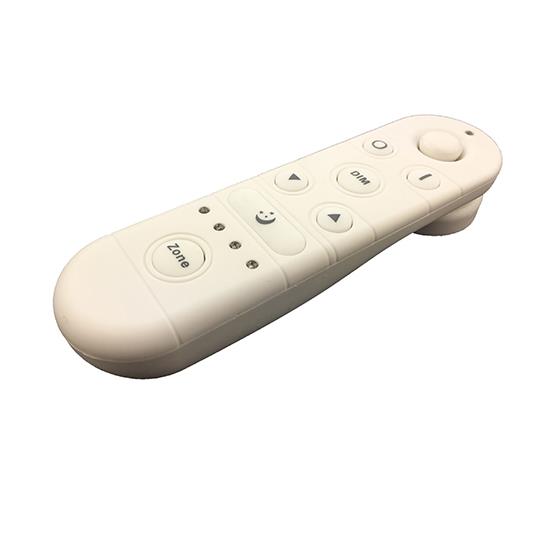

4-zone Remote Control For Single Color Led Luminaries Release

ITEM CODE: HX-RFBK-CCT-2.4G

Product Feature

1）Product supply voltage is 3V(AAA*2)

2）Adopt 2.4G wireless control, with feature of long distance and non-directional control

3）Full keys design, unique interface, simple operation

4）Multi zone control function simple: could control single zone or overall zones; controlled area indicated by indicator light , more intuitive

5）Hanging storage way, more easy to access and storage

6）Two ways for accessories installation, flexible choice

7）Two Colors: Black/White

8）RFBK-DIM-2.4G match with HC series dimming driver for both CC and CV LED luminaries

9）Three years warranty

Technical Parameters

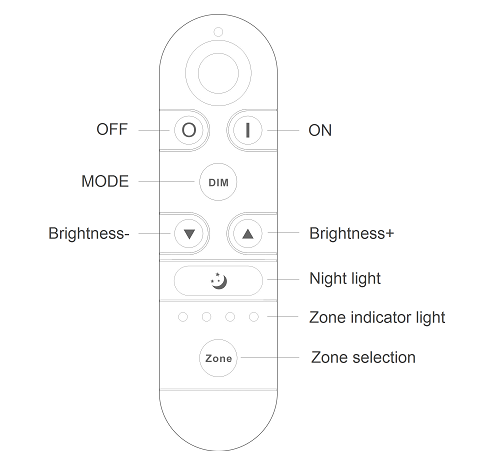

Direction for use

Remark：Short press the zone selection key is for switch between the single zones; Long press the zone selection key for more than 3s is for all zones selection, 4 indicator lights will light up at the same time, and overall control for lamps from all zones.

Zone-setting

Multi-zone remote control need to set the zone before using, that means match each driver to the corresponding group.

Matching Zone  operation

Step 1: Connect the driver with load LED(Without power on)

Step 2: Select the zone( press the zone selection key makes the indicator lamp for the corresponding zone light up)

Step 3: Pressing the key “Mode” and power on the driver, the load LEDs will be 50% brightness white as responding. Means entered the learning code/ clear code status successfully.(Notice: Step 3 need to within 8s after step 2, zone indicator lamp will be off  after without any operation for 8s )

Step 4:Continuously to press the key “On” for 3 times within 5 seconds after step 3, the brightness of LEDs will change from 25%-10%-back to preset level. Code learning successfully.

If not, please re-operate from step 1 to 4.（Notice: Power on again the driver to enter the code learning status should be 10s after last power-down）

Clear code operation

Clear code between the driver and remote control is for backing to factory default.

After clear code successfully, the driver can be controlled by anyone the same model remote control or the remote control not the same model but compatible with each other.

Step 1: Connect the driver with load LED(Without power on)

Step 2: Pressing the key “Mode” and power on the driver, the load LEDs will be 50% brightness white as responding. Means entered the learning code/ clear code status successfully(No need to select the zone, remote control in any zone status can be used to clear code for drivers in any zones)

Step 3: Continuously to press the key “Brightness -” for 3 times within 5 seconds after step 2, the brightness of LEDs will change from 25%-10%-back to preset level. Code clearing successfully

If not, please re-operate from step 1 to 4.（Notice: Power on again the driver to enter the code learning status should be 10s after last power-down）. Anyone the same model remote control or the remote control not the same model but compatible with each other can be used to clear code.

Notice：

1）Each driver can save 4 different RF codes ( it means each driver can be controlled by 4 different-code remote in the Max).If there is confusion,, more remote control all can control, just clear the code and then use the specified remote control re-code with the driver.

2）Anyone the same model remote control or the remote control not the same model but compatible with each other can be used to clear code.

5. Remote control accessories installation instructions

1）Remote control accessories list as below:

Remote control rack 1pc	3M foam sponge glue 1pc	M4 double-headed self-tapping screw 1pc	φ6 expansion tube 1pc

2）Remote control rack installation instructions:

There are two different installation methods for the remote control rack, customers can choose to install according to the different situation;

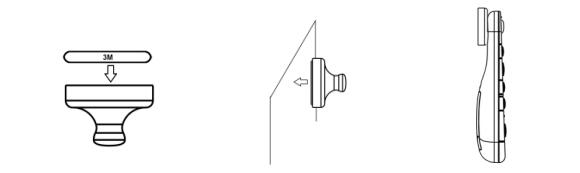

☆The first installation method: free drilling installation (for flat no ash surface)

（1）First, tear off the protective film for one side of 3M foam sponge glue, then affixed it on the behind circle of the remote control rack;

（2）Tear off the protective film for other side of 3M foam sponge glue, and stick the remote control rack on the place where you want to stick.

（3）Hang the remote control on the rack after installation

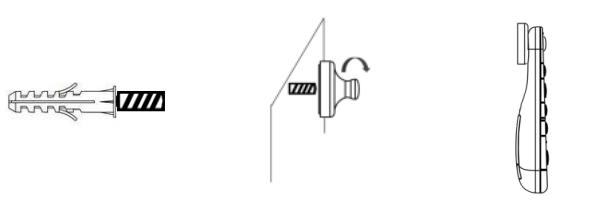

☆The second installation method: free drilling installation(suitable for uneven and ash surface)

(1) Drill a hole on the wall with a 6mm drill bit;

(2) Install the φ6 expansion tube in the hole;

(3)Twist the tip end of the M4 double-headed self-tapping screw into the expansion tube;

(4) Install the remote control rack on the screw like below

(5) Hang the remote control on the rack after installation
