What’s The Difference Between Universal Code And Unique Code?

Universal code means: one remote can control more receiver
Unique code means: one remote can control only one receiver

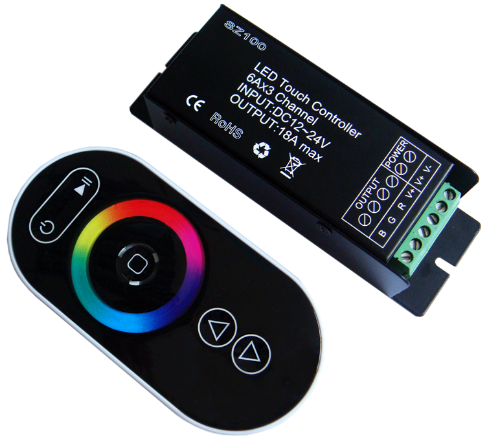

We have made a new design of the PCB board, the new controller will have a clear code function, like the following touch remote:

RF CODE
Receiver can be controlled by any one the same remote as factory default; remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.

Matching code operation
If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:
1.Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
2.Step 2: Continuously to press the key “Pause “ for 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
3.Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be control by the remote.
4.If not, please re-operate from step 1 to 2.

Clear code operation
Back to factory default, wall-panel can be controlled by any one the same remote control.
1.Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
2.Step 2: Continuously to press “Speed/Brightness -“ 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
3.Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by any remote control(any one the same remote control can be used to clear the code).
4.  If not, please re-operate from step 1 to 2.

With the new function, the two choices can be transformed each other, so you don’t need to think over how to make a choice on the universal code or unique code .
