• HX-SZ100-SYNCDIM-TOUCH
HX-SZ100-SYNCDIM-TOUCH
  • Product Introduction:

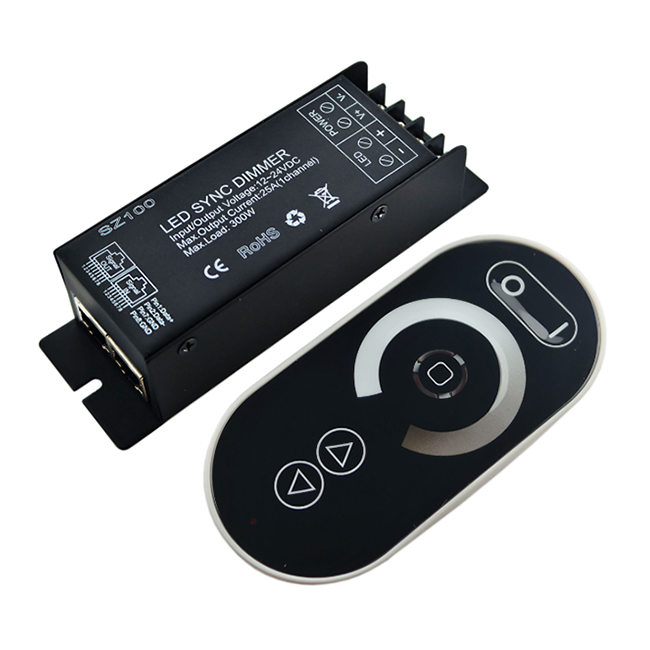

    RF Touch Dimmer HX-SZ100-SYNCDIM-TOUCH, adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt full touch RF remote control. 5 function buttons and 1 dimming ring in the center, all buttons are in the touch form, and the dimming ring has 128 levels in different brightness value. Particularly, there is a sense light in the remote control center. It shows the exactly light which was be touched. As the led strip is the sa

Product Details

Product Feature
  • Adopt PWM technology, and the dimming ring in the center has 128 levels in different brightness value, smooth and flicker-free.
  • High watt output design, up to 1*25A/ 300W.
  • Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.
  • Adopt RF remote control technology and full touch design.
  • Designing for: LED constant voltage single color product like LED single color strip.
  • 2-year warranty.
Technical Parameters
Working temperature -20-60℃
Supply voltage DC12V~24V
Output 1 channel
Connecting mode common anode
External dimension L127*W41*H32 (mm)
Packing size L147*W85*H73 (mm)
Net weight 280g
Gross weight 340g
Output gray 256 levels
Output current <25A*1CH
Max. Output power 300W
Frequency of RF remote control 433.92MHz
Interface Specifications

Direction for use
Adopts RF full touch control, with one dimming ring and 5 function buttons.
Tips: Without any operation more than 20 seconds, the touch remote will enter the sleep state, please  SHAKE the remote to wake up it before the next using.

The function of each button as below:
Name of key Instruction Remarks
ON ON in any time
OFF OFF in any time
Mode The mode will move to next, when touch the key each time 3 modes in total.
Speed/Brightness + The Speed/Brightness will +1, when  touch the key each time Speed for dynamic modes, Brightness for static modes.
Speed/Brightness - The Speed/Brightness will -1, when touch the key each time Speed for dynamic modes, Brightness for static modes.
Color Ring Touch any color temperature which you want
3 modes in total as below:
NO Patterns Remarks
1 Static 100% light Brightness is adjustable, speed is unadjustable
2 flash Speed is adjustable, brightness is unadjustable
3 fade
RF CODE
Tips: Receiver can be controlled by any one the same remote as factory default; full touch remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.
Matching code operation
If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:
  1. Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press the key “ON “ for 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be control by the remote.
  4. If not, please re-operate from step 1 to 2.
Clear code operation
Back to factory default, receiver can be controlled by any one the same remote control.
  1. Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
  2. Step 2: Continuously to press Speed/Brightness -3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.
  3. Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by any remote control(any one the same remote control can be used to clear the code).
4.  If not, please re-operate from step 1 to 2.
Typical Applications
Conjunction diagram :

Power and LED’s connection diagram:

Product information for placing order
Product name Item number
LED Dimmer with RF full touch remote HX-SZ100-SYNCDIM-TOUCH
